Compacted Wire Rope: Higher Strength
Compacted wire rope is pressed through dies to raise metallic density. The result: higher breaking force, better crush and abrasion resistance, longer life.

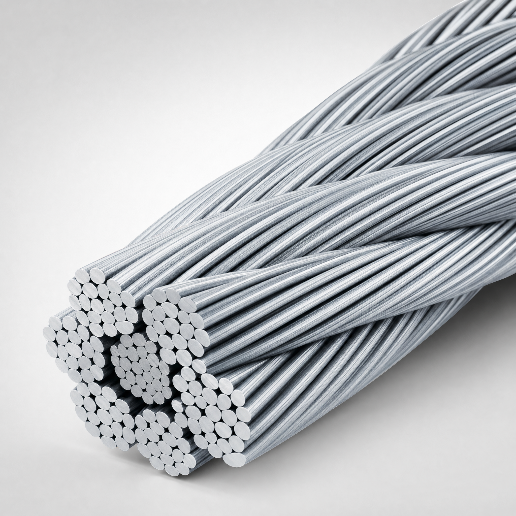

Compacted wire rope is a high-performance steel wire rope manufactured through a special compaction process. Compared to standard wire rope of the same diameter, it delivers 15-25% higher breaking force, significantly improved abrasion resistance, and substantially extended service life.
At Boyuan Metal, we supply compacted wire rope solutions for the most demanding lifting, drilling, and mooring applications.
What Makes It Different?
The difference lies in the manufacturing process.
After the strands are laid into a rope — or sometimes before — the rope or strands are passed through a die or set of rollers under high pressure. This compacts the steel wires, forcing them from round shapes into interlocking profiles with minimal gaps between them.
The result: a rope with higher metallic cross-section density, smoother external surface, and far better internal cohesion.
Key Advantages Over Standard Wire Rope
Feature | Standard Rope | Compacted Rope |
|---|---|---|
Breaking force | Baseline | 15-25% higher |
Abrasion resistance | Moderate | Significantly improved |
Crush resistance | Low | High — ideal for multi-layer spooling |
Rotation resistance | Structure-dependent | Excellent for single-part lifting |
Sheave/ drum contact | Point contact | Surface contact — lower contact stress |
Service life | Baseline | Extended by 30-100% |
These advantages make compacted rope the preferred choice for heavy-duty, high-cycle applications where downtime is costly and safety is non-negotiable.
Common Types
Type | Process | Typical Use |
|---|---|---|
Compacted Strand Rope | Strands are compacted individually, then laid into rope | Rotary drilling rigs, crawler cranes, port machinery |
Swaged Rope | Full rope is compacted after closing | Deep-sea mooring, single-part hoisting |
Die-Form Rope | Drawn through a die to final shape and tolerance | Elevators, mine hoisting |
Where Is It Used?
- Rotary drilling rigs / piling rigs: Multi-layer spooling demands extreme crush resistance. Compacted rope withstands the high pressure between rope layers on the drum.
- Large crawler cranes / all-terrain cranes: Single-part lifting requires high breaking force and low rotation. Compacted rope provides both.
- Container cranes / port equipment: Frequent lifting cycles require maximum abrasion resistance.
- Deep-sea mooring / offshore platforms: Long service life and corrosion resistance are critical. Compacted rope is often combined with hot-dip galvanizing for these applications.
- Mine hoisting: Where safety and reliability are paramount, compacted rope outperforms standard construction.
Compacted + Galvanized: A Proven Combination
For marine and offshore environments, compacted rope is frequently paired with hot-dip galvanized wire. The compaction process closes the surface gaps, and the zinc coating provides long-term corrosion protection. Together, they deliver a rope that withstands both mechanical wear and harsh environmental conditions.
Boyuan Metal Supply Capability
We supply compacted wire rope through our approved manufacturing partners, with the following capabilities:
- Diameter range: 8mm to 82mm and above
- Construction: 6×36, 35×7, 6×19, 8×19, and customized constructions
- Surface finish: Bright, hot-dip galvanized, or zinc-aluminum alloy coated
- Strength grades: 1770, 1960, 2160 MPa
- Certification: Standard mill test certificates; ABS / DNV / CCS classification society certification available
Inquire with Your Specifications
Every compacted rope application is different. To receive an accurate quotation, please include the following in your inquiry:
- Diameter and construction
- Compaction type (strand-compacted or fully swaged)
- Surface finish and strength grade
- Length and end terminations (plain, socketed, or thimble)
- Required certification
Contact Boyuan Metal today to discuss your compacted wire rope requirements.
Frequently Asked Questions
What is compacted wire rope?
It is a high-performance steel wire rope made by a special compaction process. After the strands are laid into a rope - or sometimes before - the rope or the strands are passed through a die or a set of rollers under high pressure. The result is a rope with higher metallic cross-section density, a smoother external surface and far better internal cohesion.
What are the advantages of compacted rope over standard wire rope?
For the same diameter it offers higher breaking force, better abrasion resistance, better crush resistance, lower rotation and better sheave and drum contact, which extends service life. These advantages make it the preferred choice for heavy-duty, high-cycle applications where downtime is costly.
What is the difference between compacted strand rope and swaged rope?
In compacted strand rope the strands are compacted individually and then laid into the rope. In swaged rope the full rope is compacted after closing. A third type, die-form rope, is drawn through a die to its final shape and tolerance, as used in elevators and mine hoisting.
Where is compacted wire rope used?
Rotary drilling rigs and piling rigs, where multi-layer spooling demands extreme crush resistance; large crawler and all-terrain cranes; container cranes and port equipment; deep-sea mooring and offshore platforms; and mine hoisting.
What sizes and grades of compacted wire rope are available?
Diameter from 8 mm to 82 mm and above, in constructions such as 6x36, 35x7, 6x19 and 8x19 or customized, in bright, hot-dip galvanized or zinc-aluminium alloy coated finish, in strength grades 1770, 1960 and 2160 MPa.
