Germany standard link chain

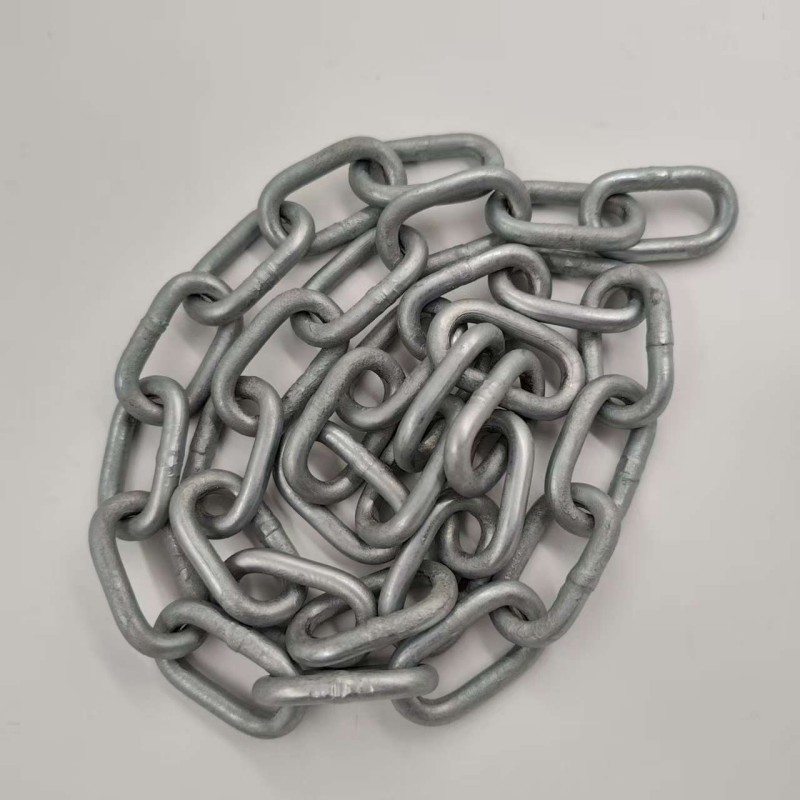

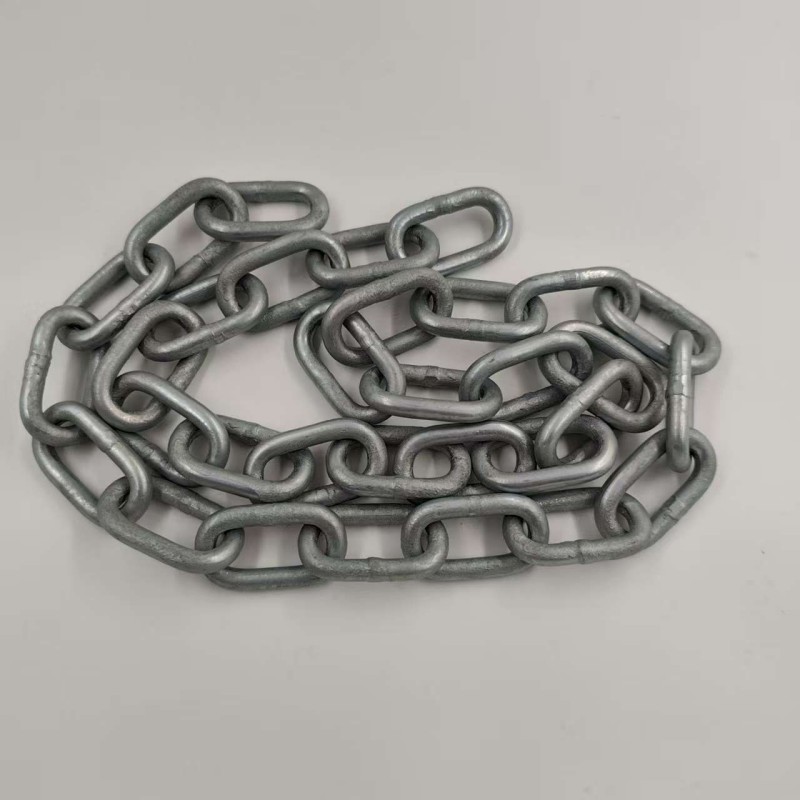

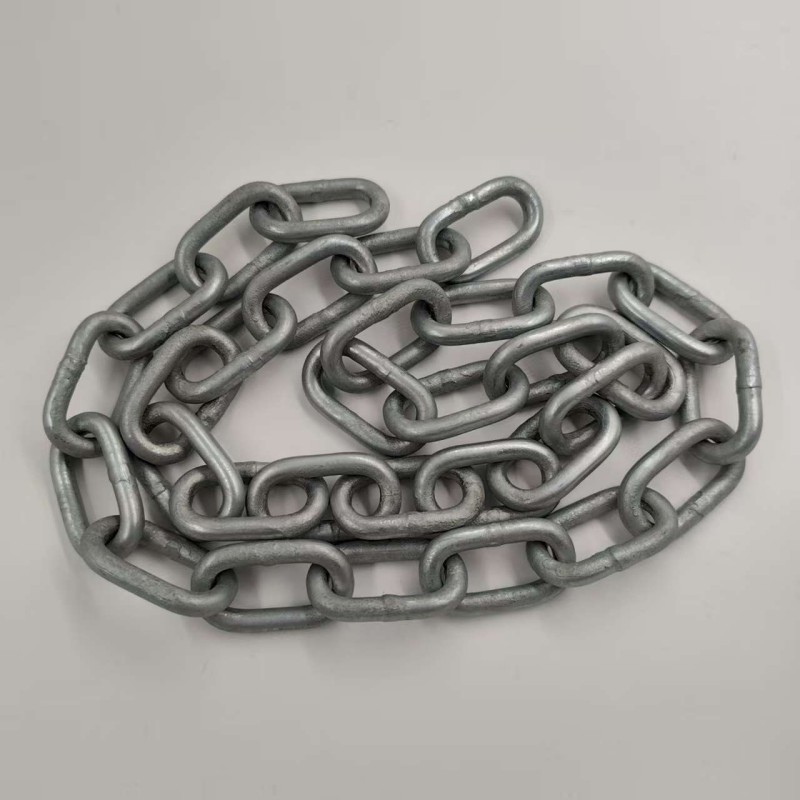

DIN5685A hot dip galvanized chain
DIN5685A hot dip galvanized short link chain, low carbon steel, for outdoor and general purpose use with heavier corrosion protection.
Specifications
- Material
- Low carbon steel
- Standard
- DIN 5685 A (short link)
- Type
- Calibrated short link chain
- Surface treatment
- Hot dip galvanized
- Size range
- 2 mm to 13 mm diameter (see catalogue table)
- Applications
- Outdoor, marine, general purpose
DIN 5685 A short link chain with a hot dip galvanized finish. The thicker zinc layer gives noticeably longer corrosion protection than electro galvanizing, which suits outdoor, coastal and damp working conditions.
Where Hot Dip Galvanized DIN 5685A Chain Is Used
DIN 5685 designates calibrated short link (form A) and long link (form C) chain for general purpose use: hanging, lifting slings made on site, towing, barriers and decorative work. It is not a grade-marked lifting chain. The hot dip galvanized finish is chosen where the chain is exposed to weather, salt air or repeated wetting.
Material and Surface Finish
Low carbon steel, hot dip galvanized. Compare with the electro galvanized version if the working environment is dry and indoor.
Sizes and Ordering
DIN 5685 is produced in diameters from 2 mm up to 13 mm, in short link (form A) and long link (form C). Weight and breaking load depend on the form and the diameter; send us the diameter and form you need and we will confirm the exact figures from our current catalogue.
