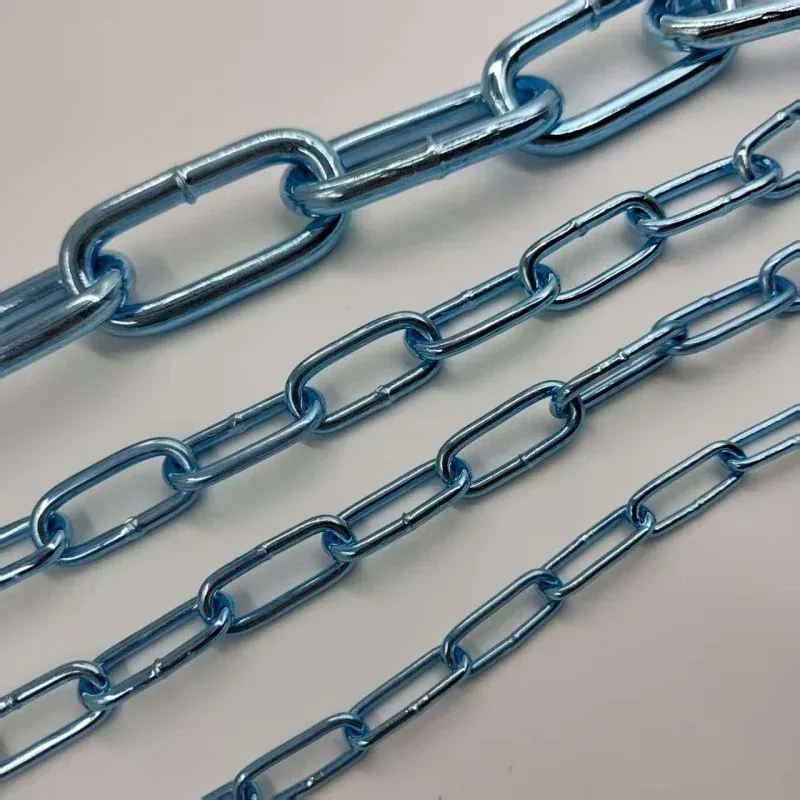

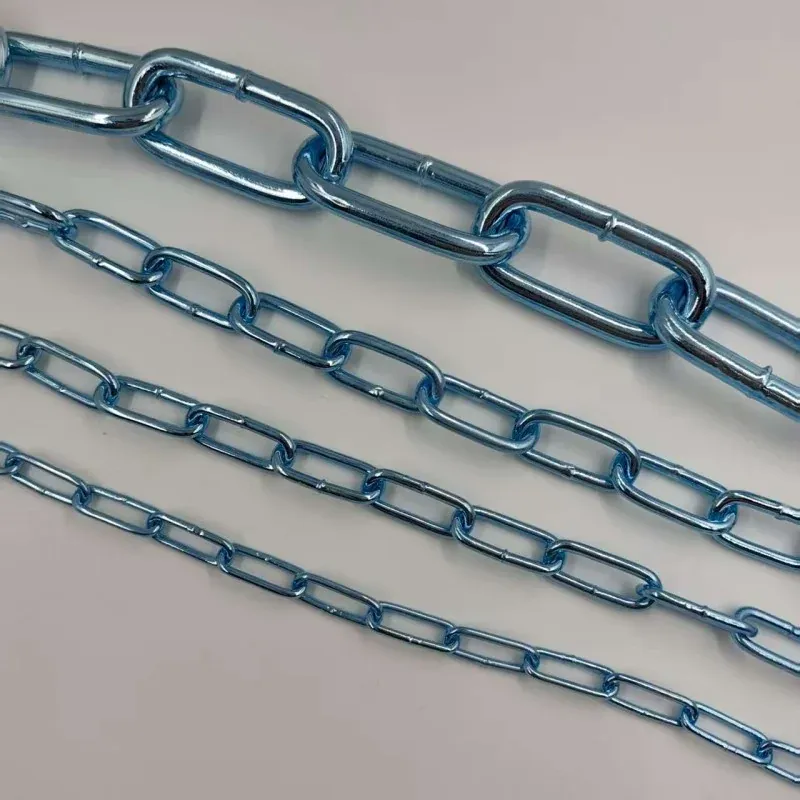

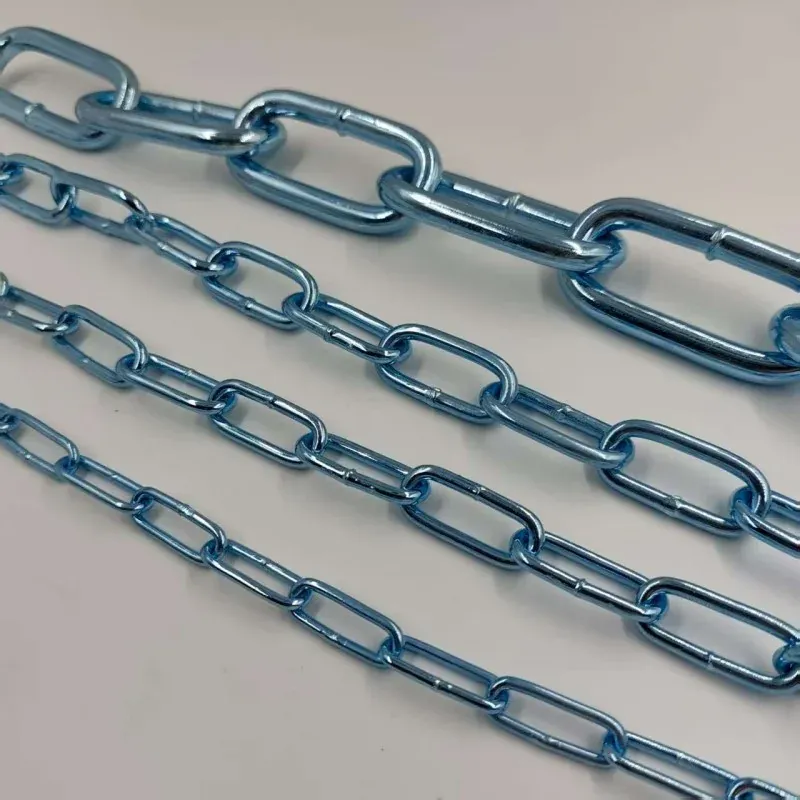

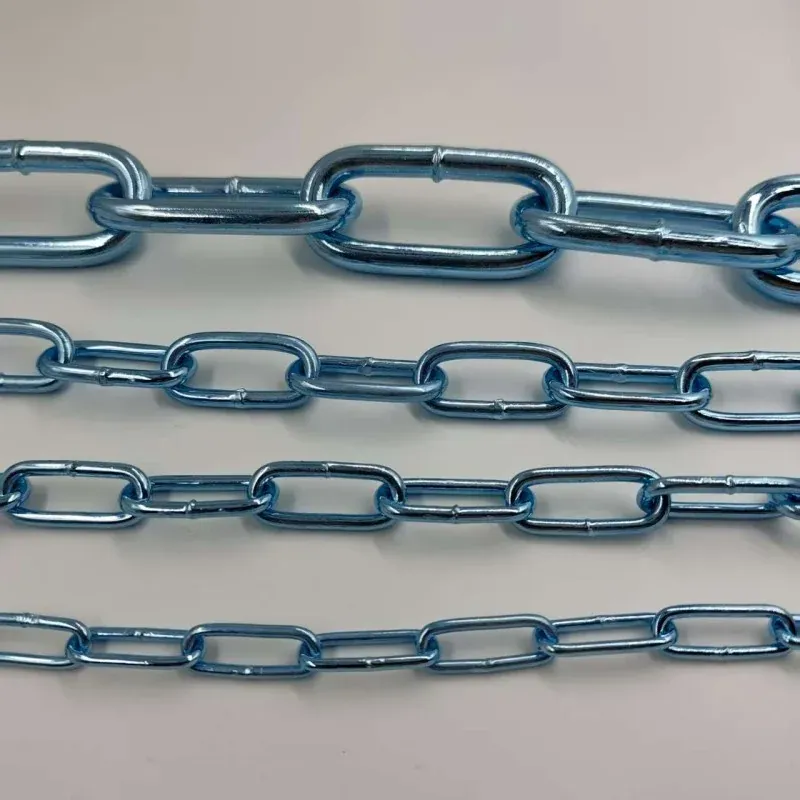

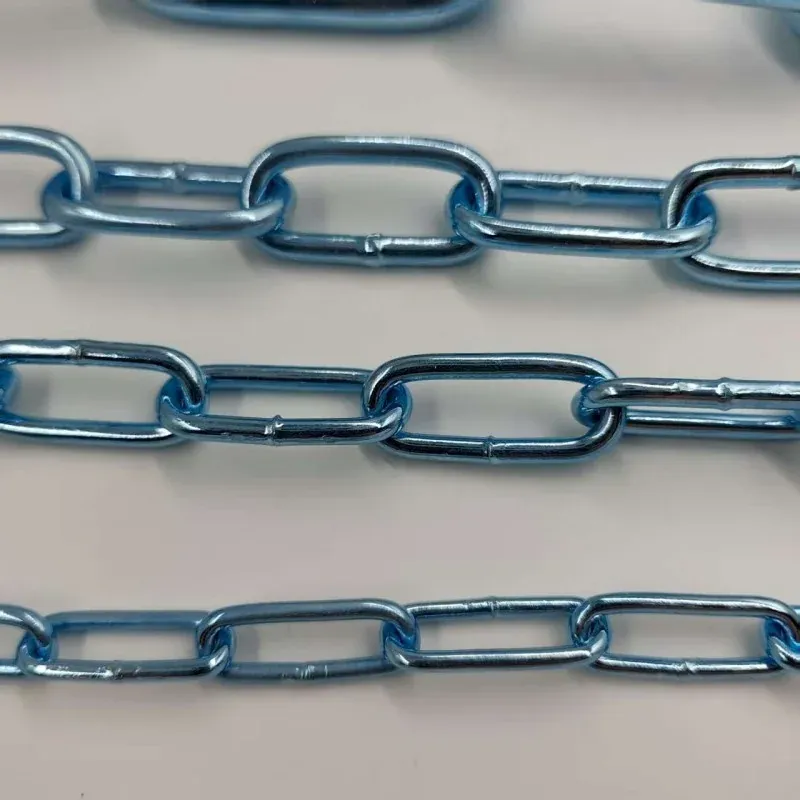

Germany standard link chain
Electro galvanized blue DIN763 link chain
Electro galvanized blue DIN763 link chain, low carbon steel, grade 20 or 25, for general purpose use.
Specifications
- Material
- Low carbon steel
- Standard
- DIN 763
- Type
- Medium/long link chain
- Surface treatment
- Zinc plated / electro galvanized (blue)
- Grade
- G20 or G25
- Size range
- 3.2 mm to 25.4 mm diameter
- Applications
- General purpose, agricultural, fencing
DIN 763 is the German standard for long link chain used for general purpose duty. This electro galvanized blue version has a bright, uniform zinc finish.
Typical Applications
Used for general purpose work: agriculture, fencing, barriers, towing and decorative hanging. The longer pitch keeps the chain flexible. DIN 763 is not a grade-marked lifting chain and must not be used for overhead lifting.
Material and Surface Finish
Low carbon steel, grade 20 or grade 25, with a blue electro galvanized (zinc plated) finish. Hot dip galvanized is available for heavier protection.
Sizes and Ordering
Standard sizes run from 3.2 mm to 25.4 mm diameter. Tell us the size, finish and quantity you need and we will confirm the specification and the packing from our current catalogue.
About Boyuan Metal
Nantong Boyuan Metal Technology Co., Ltd. manufactures and exports chain, wire rope and rigging hardware. Our range covers commercial, stainless steel, security and high tensile chains, including German standard and American standard chains. Custom sizes and non-standard chains can be produced to your drawing or sample.
