Lashing chain

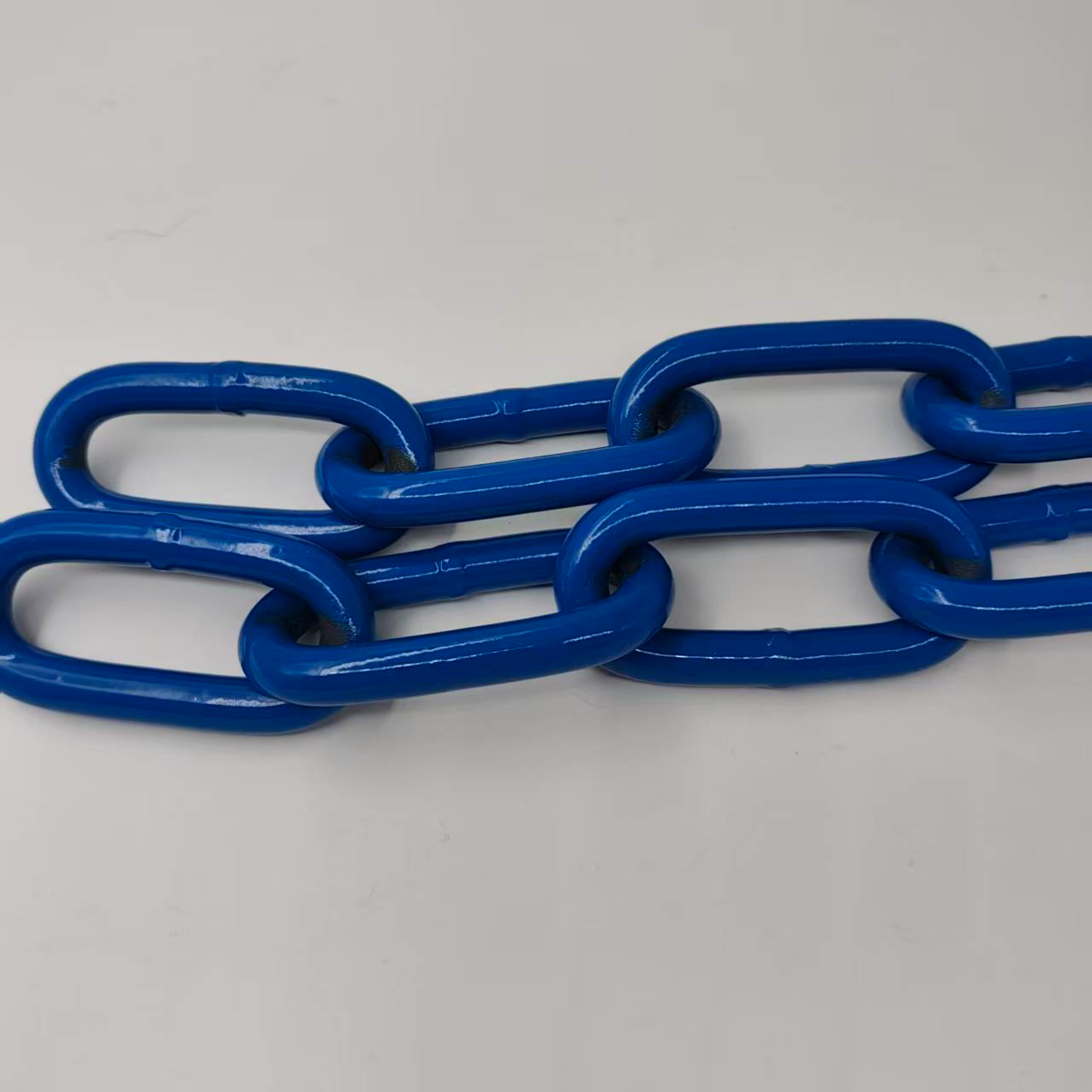

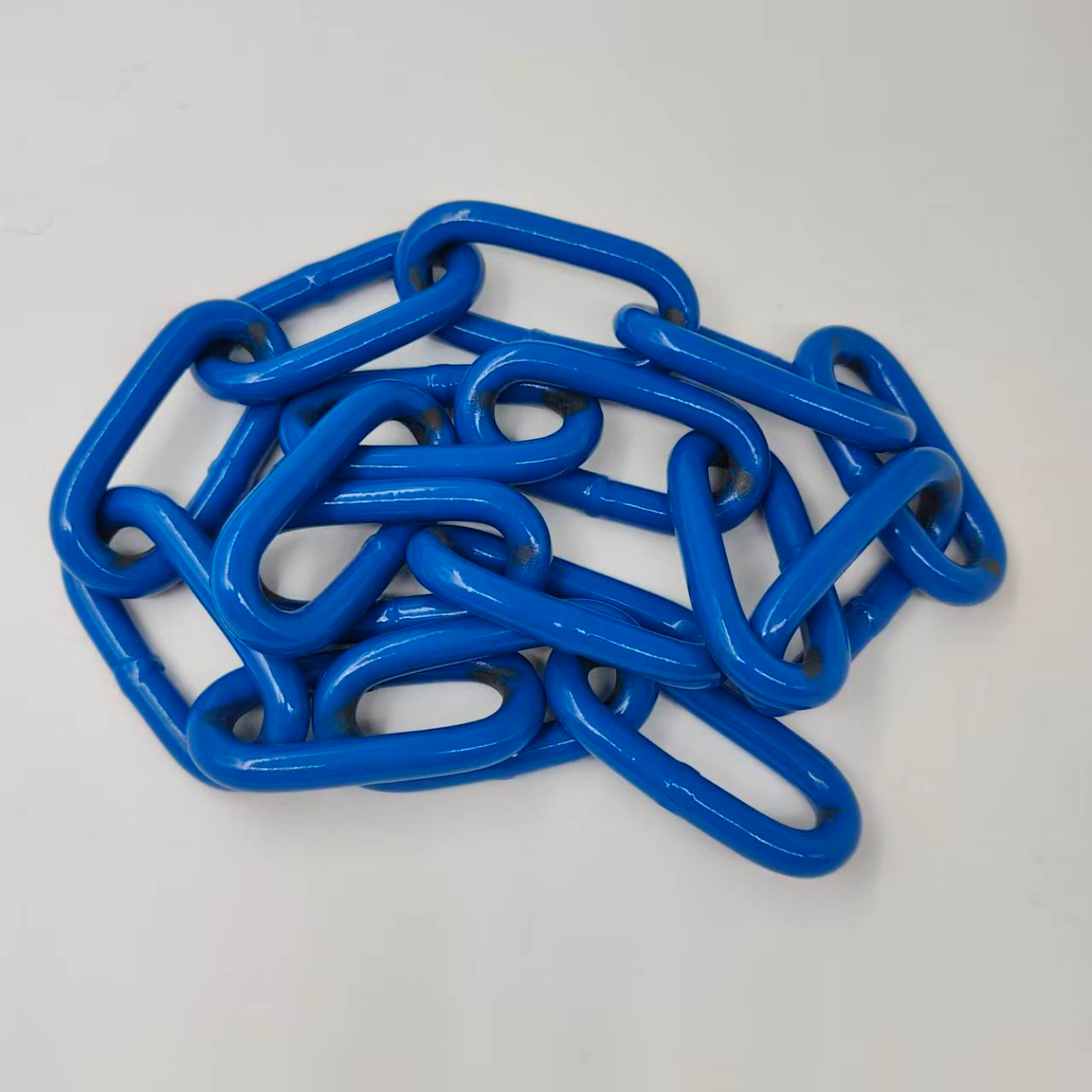

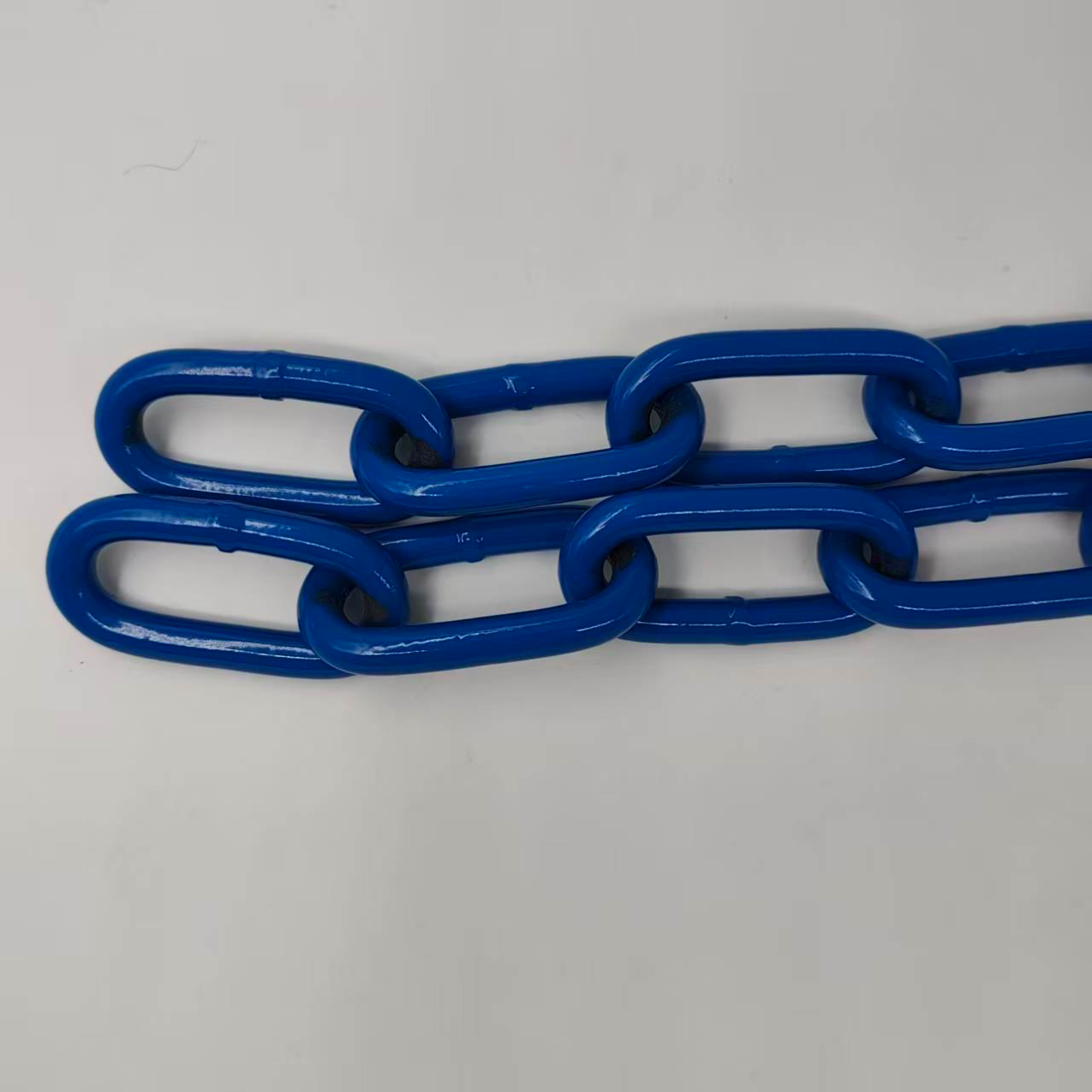

G80 blue painted lashing chain
G80 blue painted lashing chain, alloy steel, grade 80, with hooks and tensioner options for cargo securement.
Specifications
- Material
- Alloy steel (20CrNiMo or 20Mn2)
- Grade
- G80 (grade 80 lifting chain)
- Standard
- GB/T 20947-2007 / ISO 3077:2001
- Safety factor
- 4 times; manufacturing proof force 2.5 times
- Surface treatment
- Blue painted; other finishes available
- Size range
- 6 mm to 32 mm diameter (see catalogue table)
- Working load limit
- 1.12 t to 31.5 t by diameter
- Applications
- Lashing and cargo securement, lifting
G80 lashing chain is an alloy steel chain with a grade 80 marking, blue painted and fitted with hooks and tensioners for securing cargo. It is the standard chain used in load securement systems.
Where G80 Lashing Chain Is Used
Used to lash and secure loads on trucks, trailers, flat racks and containers, and for general lifting duty within its rated working load limit. Always match the chain grade and capacity to the load and the lashing point.
Material and Surface Finish
Alloy steel (20CrNiMo or 20Mn2). Standard: GB/T 20947-2007 / ISO 3077:2001 and GB/T 20946-2007 / ISO 1834:1999. Safety factor 4 times; manufacturing proof force 2.5 times; verification proof force 2 times. Surface treatment: oiled, black, electro galvanized, dipping paint, Dacromet or spray paint.
Sizes and Ordering
G80 lifting chain is produced in diameters from 6 mm to 32 mm. Inside width runs from about 7.8 mm to 41.6 mm and unit weight from about 0.8 kg/m to 23.0 kg/m. Working load limit rises from about 1.12 t to 31.5 t and minimum breaking force from about 45.2 kN to 1,280 kN across the range. Tell us the diameter and the working load you need and we will confirm the size and the fittings.
About Boyuan Metal
Nantong Boyuan Metal Technology Co., Ltd. manufactures and exports chain, wire rope and rigging hardware. Our range covers commercial, stainless steel, security and high tensile chains, including German standard and American standard chains. Custom sizes and non-standard chains can be produced to your drawing or sample.
Frequently Asked Questions
What is G80 lashing chain used for?
It is used to lash and secure cargo on trucks, trailers and flat racks, and for lifting within its rated working load limit. Match the grade and capacity to the load and the lashing point.
What does the G80 marking mean?
It identifies a grade 80 lifting chain made from alloy steel. This product follows GB/T 20947-2007 / ISO 3077:2001, with a safety factor of 4 times and a manufacturing proof force of 2.5 times. Because it is a heat-treated lifting grade, it is stronger than a commercial general purpose chain of the same diameter.
What sizes and working load limits are available?
From 6 mm to 32 mm diameter, with working load limits from about 1.12 t to 31.5 t. The heavier the load, the larger the diameter - tell us what you need to secure and we will confirm the size.
What finish is the chain supplied in?
This product is supplied blue painted. If your site or climate calls for a different finish, tell us the conditions and we will confirm what we can offer for your order.
Can the chain be supplied with hooks and tensioners?
Yes - it is supplied as a lashing assembly with hooks and tensioner options. Send us the load, the anchor points on your vehicle and the length, and we will confirm the assembly.
Full Size Table (Grade 80)
d (mm) | Pitch (mm) | Inside width min (mm) | Outside width max (mm) | Weight (kg/m) | WLL (t) | Proof force (kN) | Min breaking force (kN) |
|---|---|---|---|---|---|---|---|
6 | 18 | 7.8 | 22.2 | 0.80 | 1.12 | 28.3 | 45.2 |
7 | 21 | 9.5 | 25.9 | 1.10 | 1.50 | 38.5 | 61.6 |
8 | 24 | 10.4 | 29.6 | 1.40 | 2.00 | 50.3 | 80.4 |
10 | 30 | 13 | 37 | 2.20 | 3.15 | 78.5 | 126 |
13 | 39 | 16.9 | 48.5 | 3.80 | 5.30 | 133 | 212 |
16 | 48 | 20.8 | 59.2 | 5.70 | 8.00 | 201 | 322 |
19 | 57 | 24.7 | 70.3 | 8.00 | 11.20 | 284 | 454 |
22 | 66 | 28.6 | 81.4 | 10.80 | 15.00 | 380 | 608 |
26 | 78 | 33.8 | 96.2 | 15.20 | 21.20 | 531 | 849 |
32 | 96 | 41.6 | 118 | 23.00 | 31.50 | 804 | 1280 |
Figures from our catalogue (GB/T 20947-2007 / ISO 3077:2001): safety factor 4 times, manufacturing proof force 2.5 times. Tell us the diameter and the working load and we will confirm the size and the fittings.
