Germany standard link chain
Germany standard agriculture chain

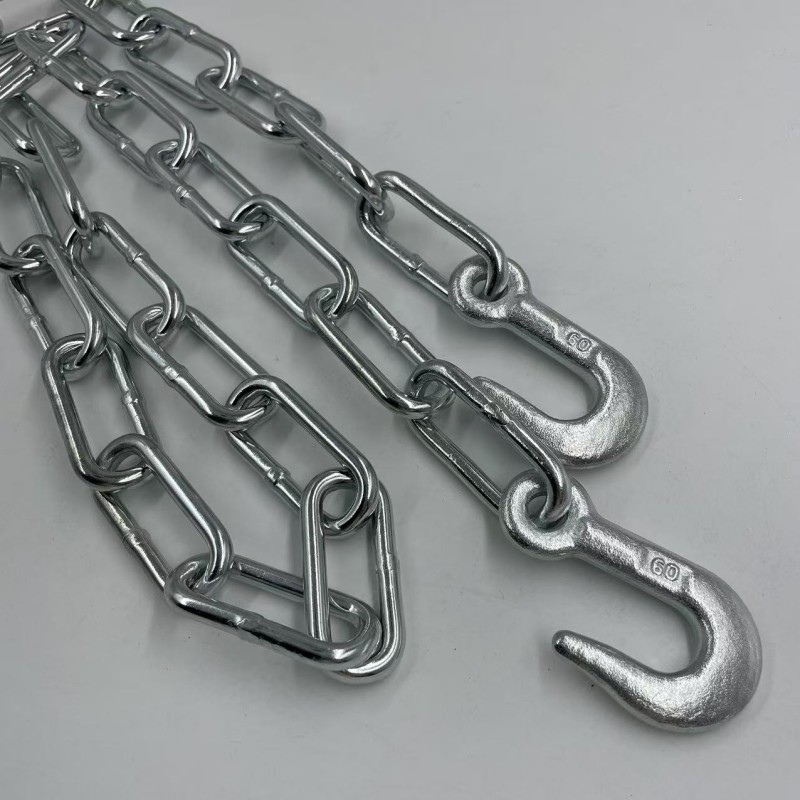

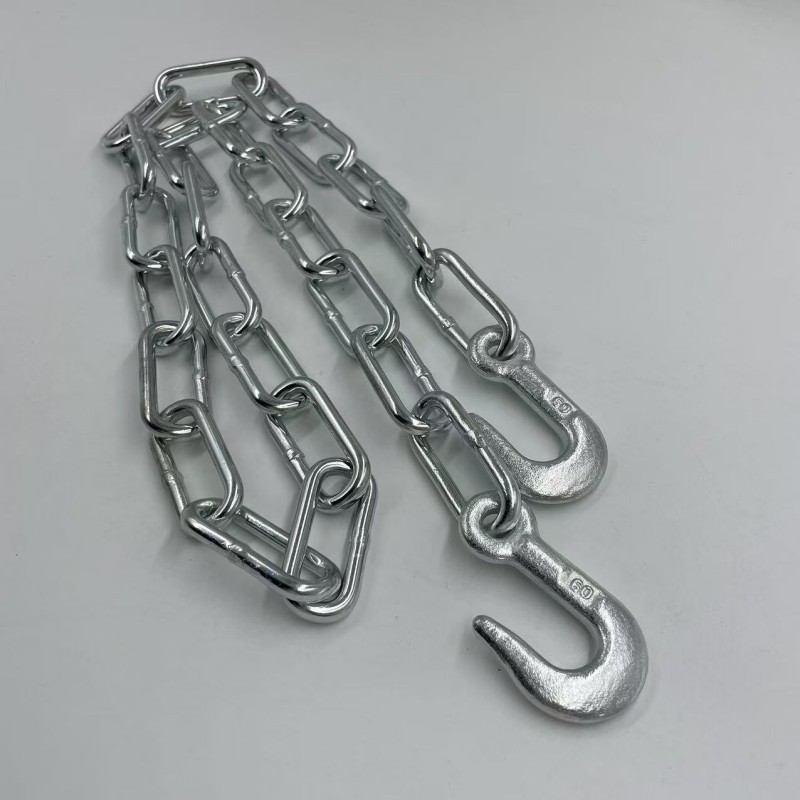

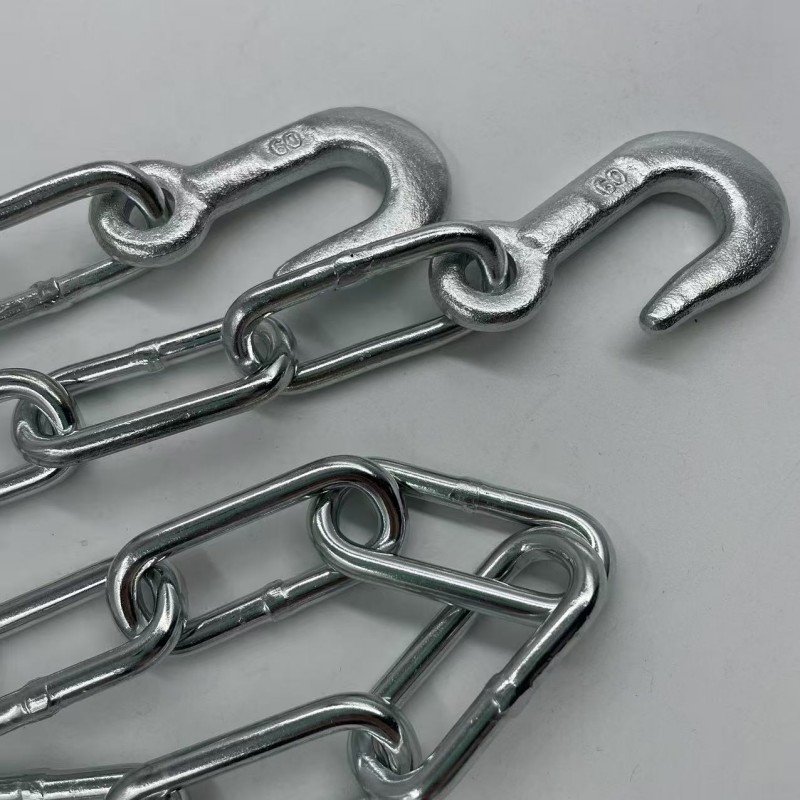

German standard agriculture chain with hooks at both ends, carbon steel, zinc plated.
Specifications
- Material
- Carbon steel
- Standard
- DIN 763 (German standard)
- Type
- Chain with hook on both ends
- Surface treatment
- Zinc plated, electro galvanized
- Applications
- Agricultural machinery, tethers, general purpose
German standard agriculture chain supplied with a hook at each end. It follows the DIN 763 form (medium link or long link), the common German standard for general purpose and agricultural chain.
Where German Standard Agriculture Chain Is Used
Used on farm equipment, feeding and stall systems, trailers and for general purpose securing. The double-hook format allows quick attachment without shackles.
Material and Surface Finish
Carbon steel with zinc plated or electro galvanized finish. Tell us the chain diameter and the hook type you need.
Sizes and Ordering
Standard sizes run from 3.2 mm up to 25.4 mm diameter in both metric and inch sizes. Unit weight ranges from roughly 10.8 kg per 200 ft at the smallest size to about 770 kg per 200 ft at the largest. Finishes include zinc plated, electro galvanized and hot dip galvanized; the full size table is available on request. DIN 763 is a general purpose chain and is not a grade-marked lifting chain.
