Germany standard link chain

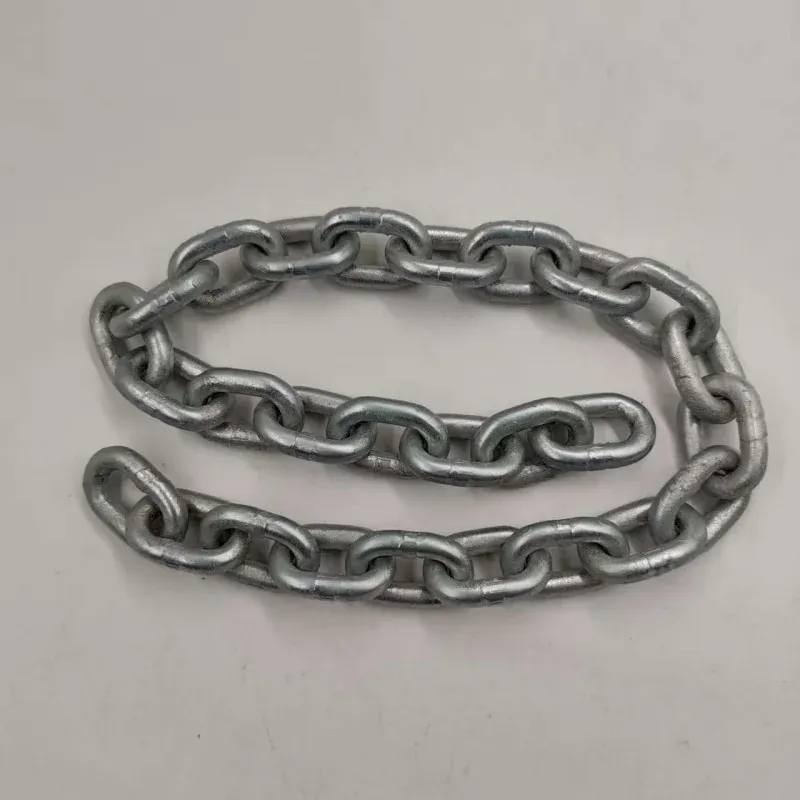

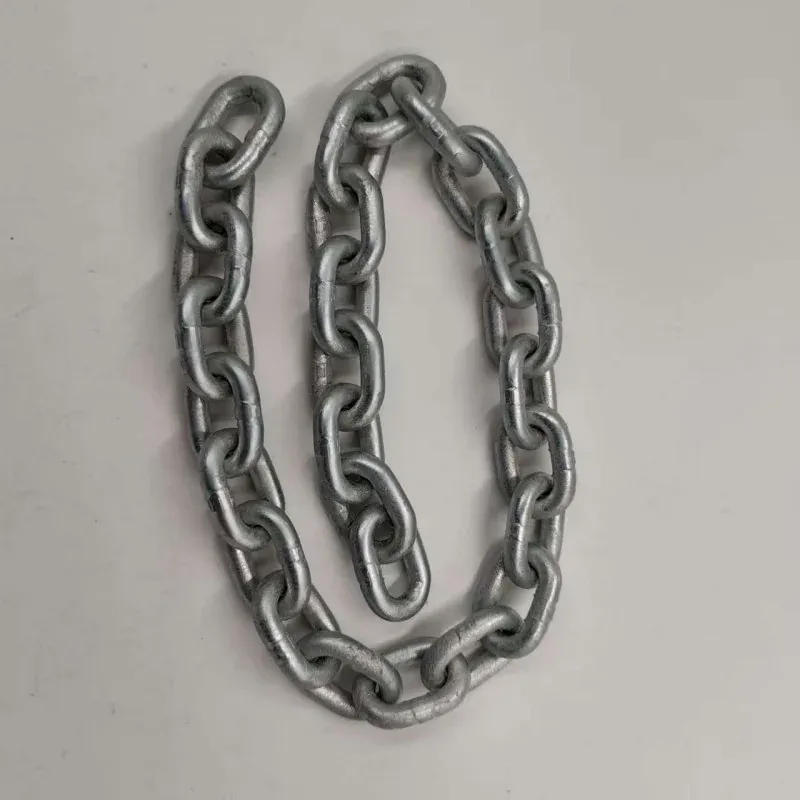

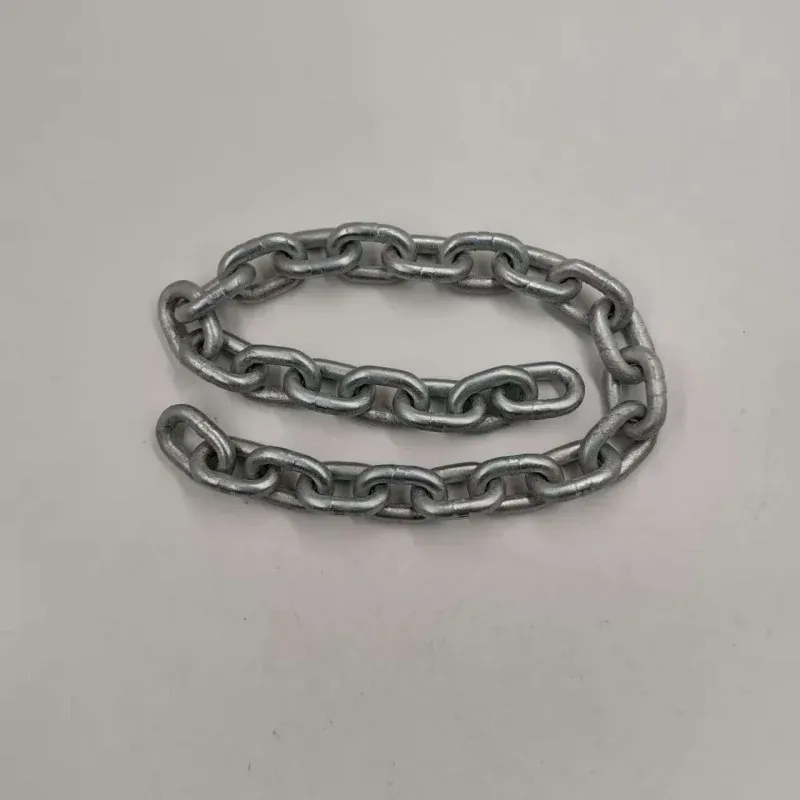

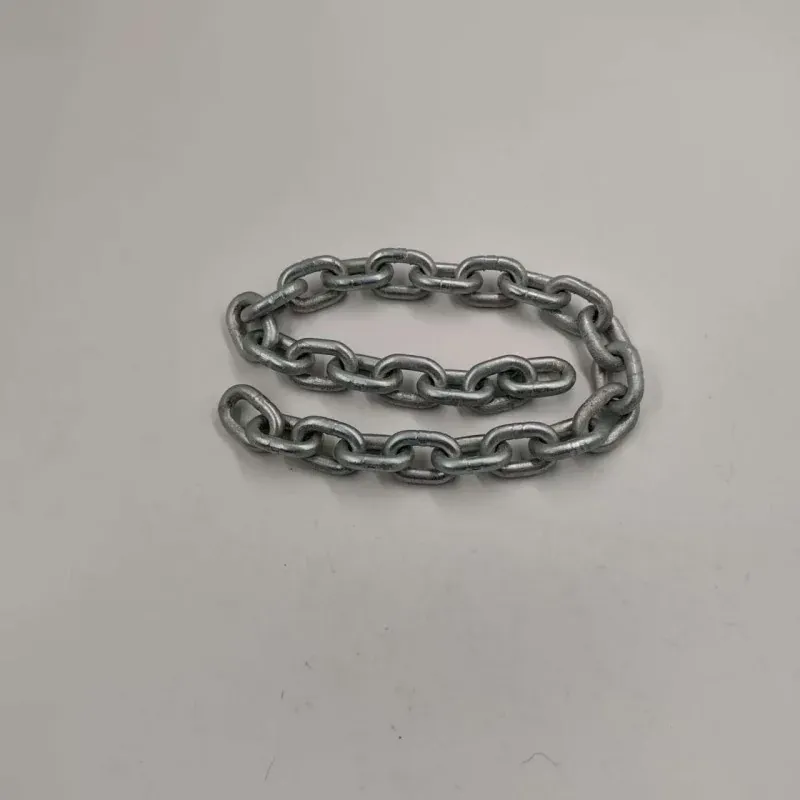

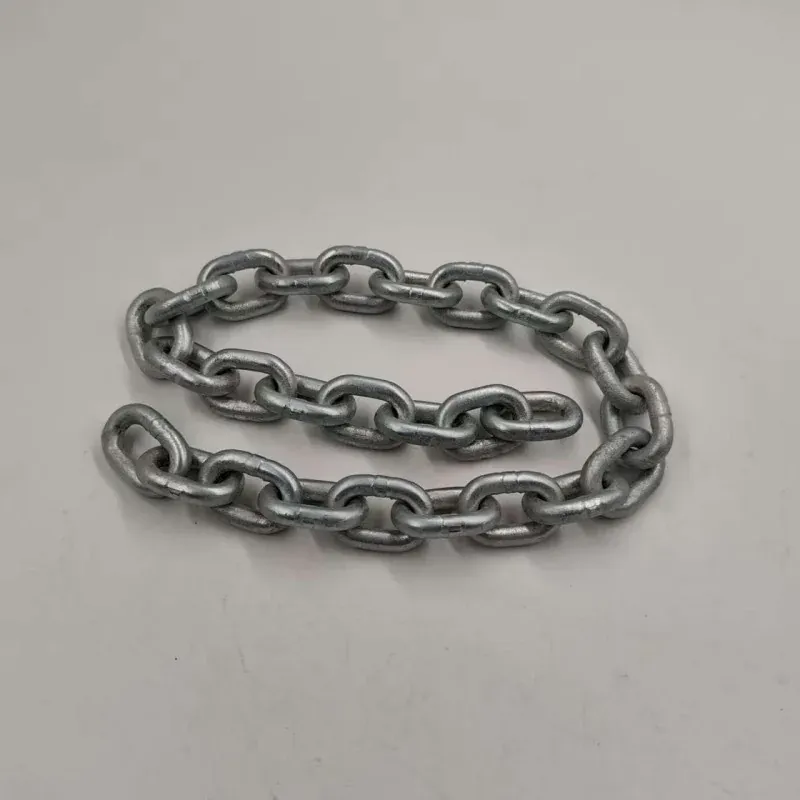

Hot dip galvanized DIN766 chain
Hot dip galvanized DIN766 chain, low carbon or alloy steel, zinc coated for outdoor and marine use.
Specifications
- Material
- Low carbon steel or alloy steel
- Standard
- DIN 766
- Type
- Short link calibrated chain
- Surface treatment
- Hot dip galvanized
- Grade
- G30 or G40
- Diameter range
- 2 mm to 32 mm
- Unit weight
- 0.07 kg/m to 23.0 kg/m
- Applications
- Outdoor, marine, general purpose
DIN 766 is the German standard for calibrated short link steel chain used for general purpose work. The hot dip galvanized version carries a thicker zinc layer than electro galvanizing, giving longer protection outdoors.
Typical Applications
Typical uses include general purpose and marine work such as mooring and anchoring lines, and for outdoor installations where corrosion protection matters. DIN 766 is not a grade-marked lifting chain and must not be used for overhead lifting.
Material and Surface Finish
Low carbon steel or alloy steel, hot dip galvanized. Available in grade 30 or grade 40 depending on the size.
Sizes and Ordering
Production covers diameters from 2 mm up to 32 mm, with unit weight from roughly 0.07 kg/m to about 23 kg/m. Tell us the size, finish and quantity you need and we will confirm the specification and the packing from our current catalogue.
