American standard transport chain G70
yellow zinc chromated transportchain G70

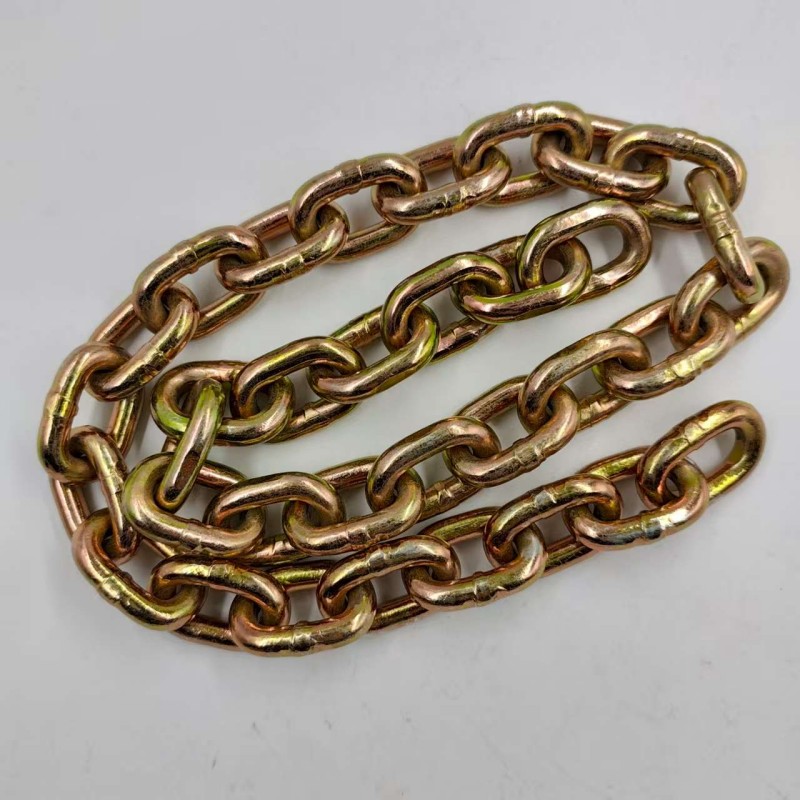

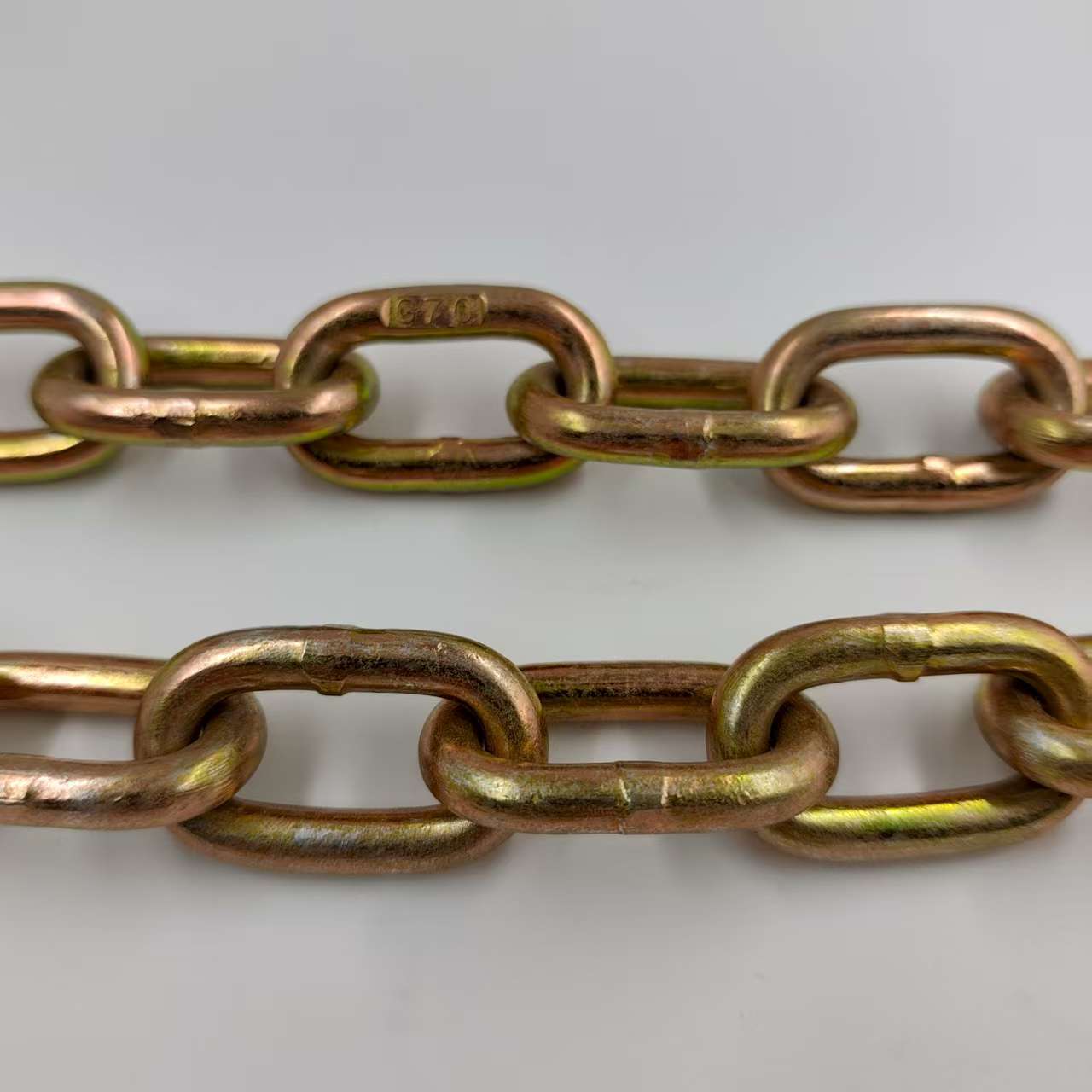

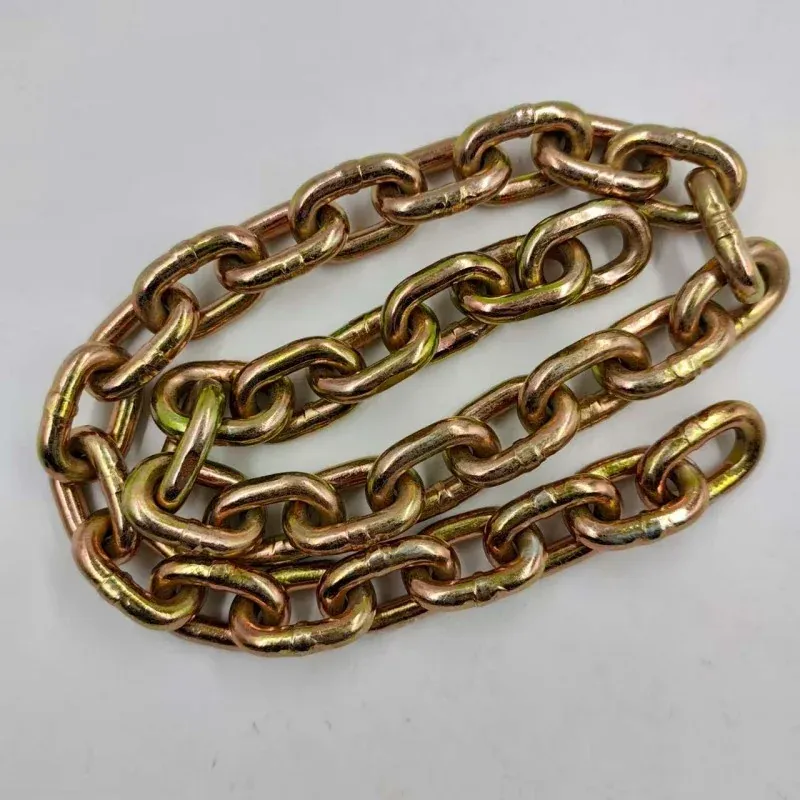

Yellow zinc chromated transport chain G70, alloy steel, American standard grade 70 for load securement.
Specifications
- Material
- Alloy steel
- Grade
- G70 (American standard transport chain)
- Standard
- NACM 90 transport chain
- Surface treatment
- Electro galvanized, yellow zinc chromated
- Working load limit
- 1,430 kg to 7,170 kg by size (see catalogue table)
- Applications
- Cargo securement and transport
Grade 70 transport chain is the American standard chain for load securement. The yellow zinc chromate finish is the conventional colour coding for grade 70 and also gives good corrosion protection.
Where G70 Transport Chain Is Used
Used for tying down and securing cargo on trucks, trailers and flatbeds, and for towing. The grade 70 marking identifies chain intended for load securement duty; it is not a grade-marked overhead lifting chain.
Material and Surface Finish
Alloy steel with an electro galvanized, yellow zinc chromated finish. Chain is also available in grade 30 proof coil and grade 43 high test.
Sizes and Ordering
Sizes run from 7 mm to 16 mm diameter with working load limits from about 1,430 kg to 7,170 kg. Tell us the diameter and the load to be secured and we will confirm the size and end fittings.
About Boyuan Metal
Nantong Boyuan Metal Technology Co., Ltd. manufactures and exports chain, wire rope and rigging hardware. Our range covers commercial, stainless steel, security and high tensile chains, including German standard and American standard chains. Custom sizes and non-standard chains can be produced to your drawing or sample.
Frequently Asked Questions
What is grade 70 transport chain used for?
It is the American standard chain for load securement - tying down cargo on trucks, trailers and flatbeds, and for towing.
Why is grade 70 chain yellow?
The yellow zinc chromate plating is the recognised colour code for grade 70, which makes the grade easy to identify on site. It also gives good corrosion protection for outdoor use.
What sizes and working load limits are available?
From 7 mm to 16 mm diameter, with working load limits from about 1,430 kg to 7,170 kg. Tell us what you are securing and we will confirm the size and fittings.
Is grade 70 chain suitable for overhead lifting?
No. It is a transport and load securement chain, not an overhead lifting chain. Use a grade 80 or grade 100 lifting chain for overhead lifting.
Do you also supply other American standard grades?
Yes - grade 30 proof coil and grade 43 high test are available alongside grade 70. Tell us the application and we will recommend the grade.
