Double Protection: The Duplex Coating Process for Chains
duplex coating delivers corrosion resistance and surface quality that neither process can achieve alone.
For chains that must perform in the harshest environments — saltwater, chemical exposure, constant moisture — even the best single-layer coating may not be enough. That's where the duplex coating process comes in.
By combining hot dip galvanizing (a thick, metallurgically bonded base layer) with electro galvanizing (a smooth, bright top layer), duplex coating delivers corrosion resistance and surface quality that neither process can achieve alone.
What Is Duplex Coating?
A duplex coating is a two-layer protection system:
- Base layer: Hot dip galvanized — the chain is immersed in molten zinc at approximately 450°C, forming a thick zinc-iron alloy coating (40–90 microns) that provides decades of corrosion protection.
- Top layer: Electro galvanized — a thinner (5–15 microns), bright, smooth zinc layer is electroplated over the hot dip base at room temperature.
The result is a composite coating that combines the durability of hot dip galvanizing with the appearance and smoothness of electro galvanizing.
How the Duplex Coating Process Works

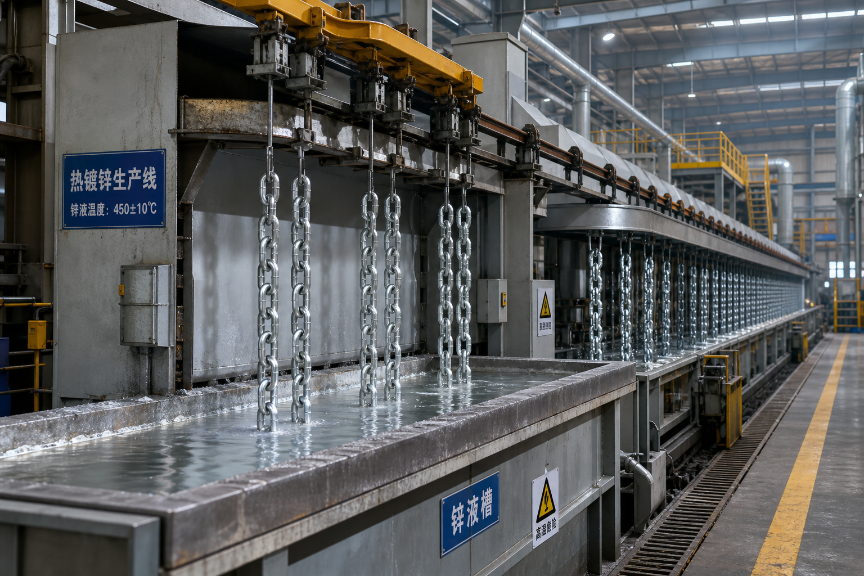

Step 1: Hot Dip Galvanizing (The Foundation)
The chain first undergoes a complete hot dip galvanizing process:
Stage | What Happens |
|---|---|
Surface preparation | Degreasing, pickling, and fluxing clean the chain surface |
Galvanizing | The chain is immersed in molten zinc at ~450°C, forming metallurgical Zn-Fe alloy layers |
Cooling | Air or water cooling solidifies the coating |
After this stage, the chain has a thick, durable zinc coating, but the surface may be matte grey with minor irregularities such as zinc runs.
Step 2: Surface Preparation for Electroplating
Before the second layer can be applied, the hot dip surface is lightly cleaned and activated with a mild acid solution. This ensures the electroplated layer bonds properly to the base coat.
Step 3: Electro Galvanizing (The Finishing Touch)
The chain then goes through electroplating:
Stage | What Happens |
|---|---|
Electroplating | A thin layer of bright zinc is deposited over the hot dip base at room temperature |
Passivation | A trivalent chromium (Cr³⁺) passivation layer seals the surface and enhances corrosion resistance |
Drying | Low-temperature drying cures the passivation layer |
The top layer smooths over surface irregularities from the hot dip process, eliminates zinc runs, and gives the chain a bright, uniform silver-white finish.
The Composite Coating Structure
Layer | Thickness | Function |
|---|---|---|
Top: Electro galvanized zinc | 5–15 microns | Smooth surface, bright appearance, easy cleanability |
Middle: Hot dip Zn-Fe alloy | 40–90 microns | Primary corrosion barrier, sacrificial protection, hardness |
Base: Steel chain | — | Structural integrity |
Total coating thickness: Typically 45–105 microns — far thicker than electro galvanizing alone (8–25 microns).
Why Choose Duplex Coating?
1. Better Corrosion Resistance
Coating Type | Outdoor Service Life |
|---|---|
Electro galvanized only | 2–8 years |
Hot dip galvanized only | 15–50 years |
Duplex (HDG + Electro) | 25–50+ years |
The thick hot dip base provides sacrificial protection that lasts for decades. The electro top layer seals surface imperfections, further delaying corrosion.
2. Smoother, Brighter Surface
Surface Attribute | Hot Dip Only | Duplex Coating |
|---|---|---|
Appearance | Matte grey, may have zinc runs | Bright, uniform silver-white |
Smoothness | Moderate | Excellent — electroplating smooths over irregularities |
Sharp edges | Possible zinc drips | Eliminated |
Cleanability | Moderate | Excellent — smooth surface is easy to wash |
3. Longer Service Life
The smooth top layer reduces friction between links and between the chain and sprockets. Combined with the thick corrosion-resistant base, this means less wear and a longer working life — lowering the total cost of ownership.
4. Better Cleanability
The smooth, non-porous surface is easy to clean and sanitize. This is a key advantage for food processing, pharmaceutical, and chemical applications where hygiene matters.
Where Duplex Coating Excels
Application | Why Duplex Coating Is Preferred |
|---|---|
Marine & coastal | Superior saltwater resistance; smooth surface reduces marine growth adhesion |
Food processing | Smooth surface is hygienic and easy to clean; resists acidic and alkaline sanitizers |
Chemical plants | Withstands aggressive fumes and liquids; long service life reduces downtime |
Urban & architectural | Bright, attractive finish; weather-resistant without painting; safe for public contact |
Outdoor conveyors | Resists abrasion and corrosion simultaneously; smooth surface reduces sprocket wear |
Duplex Coating vs. Other Finishes
Property | Electro Only | Hot Dip Only | Duplex Coating |
|---|---|---|---|
Coating thickness | 8–25 μm | 50–80 μm | 45–105 μm |
Corrosion resistance | Moderate | High | Very high |
Surface smoothness | Excellent | Moderate | Excellent |
Appearance | Bright silver | Matte grey | Bright silver, uniform |
Cleanability | Good | Moderate | Excellent |
Sacrificial protection | Limited | Excellent | Excellent |
Cost | Low | Medium | Highest |
Frequently Asked Questions
What is the difference between duplex coating and standard hot dip galvanizing?Duplex coating adds a smooth electroplated top layer over the hot dip base. This eliminates zinc runs and sharp edges, improves appearance, and enhances cleanability — while retaining the thick, durable base layer.
Is duplex coating more expensive?Yes — it requires two separate processes. However, the extended service life, reduced maintenance, and premium appearance often justify the investment for demanding applications.
What coating thickness should I expect?Total thickness typically ranges from 45 to 105 microns — combining 40–90 microns from the hot dip base and 5–15 microns from the electro top layer.
Does duplex coating affect chain dimensions?Yes, the coating adds thickness. This should be accounted for in tight-tolerance applications.
How do I maintain duplex-coated chains?Rinse with fresh water after salt or chemical exposure. Inspect periodically. The smooth surface makes routine cleaning easier than standard hot dip galvanized chain.
Boyuan Metal offers duplex-coated chains for applications where standard finishes are not enough. Our process combines hot dip galvanizing and electro galvanizing to deliver a chain with both exceptional durability and a premium surface finish. Contact us to discuss your requirements or request a sample.
