Steel Wire Rope Applications: A Comprehensive Guide
Steel wire rope is one of the most versatile load-bearing components in modern industry
Its unique combination of high tensile strength, flexibility, fatigue resistance, and abrasion tolerance makes it irreplaceable across dozens of sectors. Understanding where and how wire rope is used is the first step toward specifying the right construction, core, lay direction, and surface finish for a given application.
This guide draws on technical literature from leading international wire rope manufacturers to present a structured overview of the major application categories.
1. Cranes and Lifting Equipment
The single largest consumer of steel wire rope worldwide is the crane industry. Wire ropes are used as hoist ropes, luffing ropes, trolley ropes, and pendant lines on virtually every type of crane.
Crane Type | Typical Wire Rope Requirement |
|---|---|
Tower cranes | High strength, multi-layer spooling capability, compacted constructions |
Mobile cranes | Rotation-resistant ropes, high breaking strength (1960–2160 MPa), compacted strands |
Overhead / gantry cranes | Flexible ropes with good fatigue life, regular and lang lay depending on drum configuration |
Container cranes | High abrasion resistance, long service life under high cycle rates |
Offshore cranes | Corrosion-protected (hot-dip galvanized or stainless), certified by classification societies |
Key technical considerations from international manufacturers:
- Rotation resistance is critical for single-part hoisting at height.
- Compacted ropes provide higher breaking force for the same diameter and better crush resistance on multi-layer drums.
- Fatigue life is directly related to sheave diameter to rope diameter ratio (D/d ratio). A minimum D/d of 25–30 is typically recommended for standard ropes, higher for rotation-resistant types.
2. Mining
Mining — both surface and underground — is one of the most demanding environments for steel wire rope. Applications include hoisting, haulage, and shaft sinking.
Underground Mining
Application | Rope Type | Key Requirement |
|---|---|---|
Drum hoist ropes | 6×19, 6×36, or flattened strand (triangular) constructions | High breaking strength, controlled elongation |
Friction (Koepe) hoist ropes | Compacted, plastic-coated, or standard ropes | Maximum fatigue life over sheaves, precise diameter tolerance |
Balance ropes | Non-rotating or low-rotation constructions | Stable behavior in vertical shafts |
Guide ropes | Locked coil or half-locked coil | Stiffness, smooth surface, long service life |
Industry insight: Manufacturers like Bridon-Bekaert and CASAR emphasize that friction hoisting places extreme demands on rope diameter stability. Variations of ±0.2 mm can cause uneven sheave wear and premature replacement.
Surface Mining
- Draglines — Very large diameter ropes (up to 80mm+), high abrasion resistance, lang lay preferred on drag ropes and hoist ropes.
- Shovels / Excavators — Crowd ropes, retract ropes, hoist ropes, all requiring maximum durability.
3. Marine and Offshore
Saltwater corrosion, dynamic loading, and constant movement define the marine environment. International manufacturers categorize marine wire rope by application rather than by generic type.
Mooring and Anchoring
Application | Typical Specification |
|---|---|
Vessel mooring lines | 6×36 + IWRC, hot-dip galvanized, Class A or B coating |
Offshore platform permanent mooring | 6×36 or spiral strand, galvanized or zinc-aluminum coated, 40+ year design life |
Tug and tow lines | 6×36 or 6×37, high flexibility, good shock load absorption |
Key insight: For permanent offshore mooring, spiral strand ropes (from manufacturers like Bridon-Bekaert) offer superior axial stiffness and corrosion resistance compared to conventional six-strand ropes. However, six-strand ropes remain the standard for vessel mooring due to their flexibility and ease of handling.
Shipboard Applications
- Crane hoist ropes — Compacted, rotation-resistant, certified by ABS/DNV/LR.
- Winch and windlass ropes — Flexible, high fatigue resistance, galvanized.
- Lifeboat falls — 6×19 or 6×36, stainless steel or galvanized, salt-spray tested.
- Lashing and securing — General-purpose ropes for cargo securing on deck.
4. Elevators
Elevator wire rope is a specialty category with its own standards and construction requirements.
Elevator Type | Rope Construction | Key Features |
|---|---|---|
Low-rise / low-speed | 6×19 + FC, 8×19 + FC | Cost-effective, flexible, good for small sheave diameters |
High-rise / medium-speed | 8×19 + IWRC, 8×19S + IWRF | Higher strength, better fatigue life |
Ultra-high-rise / high-speed | 9×19 + IWRC, 9×19S + IWRF | Maximum stability, minimal rotation |
Industry standards: ISO 4344, EN 12385-5, and various national standards govern elevator rope construction. Key parameters include:
- Number of strands (6, 8, or 9) for traction ropes
- Core type (fiber for low-rise, IWRC for high-rise)
- Flexibility for small sheave diameters
- Lubrication — specialized elevator rope greases
5. Oil and Gas Exploration
Beyond mooring, the oil and gas industry uses wire rope in numerous specialized applications:
- Drilling lines — 6×19 construction, high strength, abrasion-resistant, used on drawworks for raising/lowering the drill string.
- Sand lines — Smaller diameter, high flexibility, used for wireline operations.
- Suicide lines / safety lines — General purpose ropes for auxiliary lifting on rigs.
Key requirement: Regular inspection and retirement criteria are critical. Industry standards like API RP 9B govern the use and replacement of drilling lines, with ton-mile tracking as a standard maintenance practice.
6. Construction and Civil Engineering
Wire ropes are essential in construction for multiple functions:
Application | Rope Type |
|---|---|
Pile driving and drilling | Compacted ropes, high crush resistance for multi-layer spooling |
Suspension and cable-stayed bridges | Spiral strand, locked coil, or pre-stretched ropes |
Guy lines | Galvanized 6×19 or 6×37, high corrosion resistance |
Material hoists | Flexible 6×36, good fatigue life |
Demolition and winching | High abrasion resistance, lang lay |
Bridge cables deserve special mention: Spiral strand and locked coil ropes used in bridges are highly engineered products, manufactured with pre-stretching, and specified for 100+ year design life. They represent the highest technical level of wire rope manufacturing.
7. Forestry and Agriculture
Wire rope serves demanding, high-abrasion applications in forestry and agriculture:
- Skidding and yarding ropes — Very high abrasion resistance, compacted or standard constructions, lang lay for better wear distribution.
- Cable logging / skyline systems — High-strength compacted ropes, often with special cores.
- Agricultural towing and winching — General-purpose ropes, galvanized for outdoor storage.
- Irrigation and pump lifting — Corrosion-resistant ropes (galvanized or stainless) for water-well pumps.
8. Industrial and Material Handling
General industrial applications include:
- Conveyor counterweight ropes
- Furnace charging and door lifting — High-temperature grades available
- Overhead door counterbalance cables
- Pallet rack safety netting cables
- Winch ropes for vehicle recovery
Selection Guide: Matching Rope to Application
Application | Recommended Construction | Core | Finish | Key Priority |
|---|---|---|---|---|
Tower crane hoist | Compacted, rotation-resistant | IWRC | Bright or galvanized | Stability, fatigue |
Mobile crane | 35×7 rotation-resistant, compacted | IWRC | Bright | Rotation resistance |
Drum hoist (mine) | 6×36 or flattened strand | IWRC | Bright | Strength, wear |
Friction hoist (mine) | Compacted, plastic-coated | IWRC | Galvanized | Diameter stability |
Vessel mooring | 6×36 | IWRC | Hot-dip galvanized | Corrosion, flexibility |
Offshore permanent mooring | Spiral strand | — | Heavy galvanized | Axial stiffness, life |
Elevator traction | 8×19 or 9×19 | FC or IWRC | Bright or galvanized | Flexibility, stability |
Drilling line | 6×19 | IWRC | Bright | Abrasion, strength |
Forestry skidding | 6×19 or 6×36 | IWRC | Galvanized | Extreme abrasion |
Pump lifting | 6×19 or 6×36 | FC or IWRC | Galvanized or SS | Corrosion |

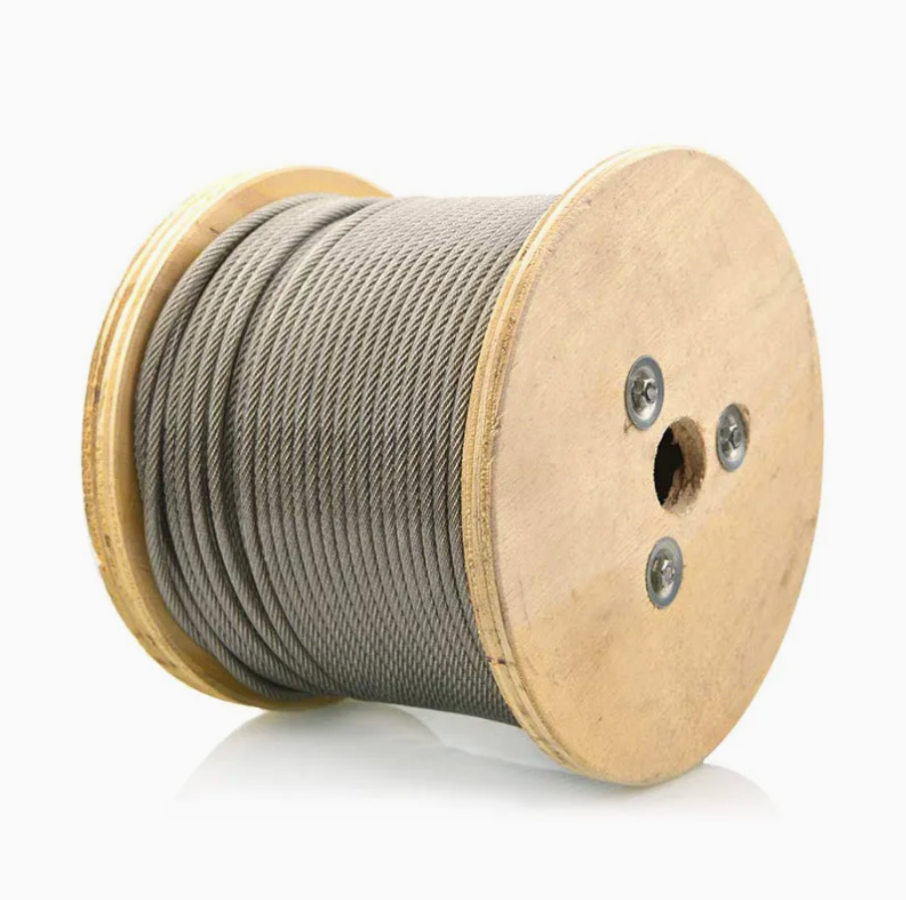

Boyuan Metal supplies steel wire ropes in 6×7, 6×19, 6×36, and various compacted constructions, with FC or IWRC cores, bright or hot-dip galvanized finishes, and diameters from 1mm to 82mm. Contact us to discuss your application requirements — we will recommend the right rope for your working conditions and budget.
