Germany standard link chain
Blue zinc plated DIN5685A short link chain

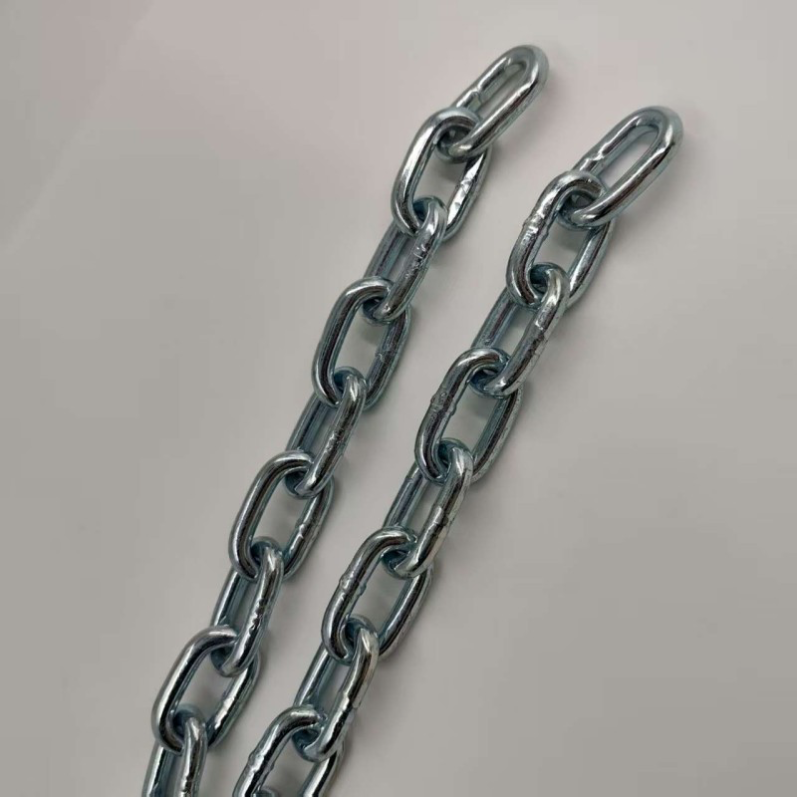

Blue zinc plated DIN5685A short link chain, carbon steel, 2-13 mm, calibrated short link for general purpose use.
Specifications
- Material
- Carbon steel
- Standard
- DIN 5685 A (short link)
- Type
- Calibrated short link chain
- Surface treatment
- Blue zinc plated / electro galvanized
- Size range
- 2 mm to 13 mm diameter (see catalogue table)
- Applications
- General purpose, hanging, towing, decorative
DIN 5685 A is the short link form of the German general purpose chain standard. The links are short and calibrated so the chain runs evenly through hooks and small sheaves.
Where DIN 5685A Chain Is Used
DIN 5685 designates calibrated short link (form A) and long link (form C) chain for general purpose use: hanging, lifting slings made on site, towing, barriers and decorative work. It is not a grade-marked lifting chain.
Material and Surface Finish
Carbon steel with a blue zinc plated (electro galvanized) finish for a bright appearance and basic corrosion protection. Hot dip galvanized is available for heavier protection.
Sizes and Ordering
DIN 5685 is produced in diameters from 2 mm up to 13 mm, in short link (form A) and long link (form C). Weight and breaking load depend on the form and the diameter; send us the diameter and form you need and we will confirm the exact figures from our current catalogue.
