Germany standard link chain

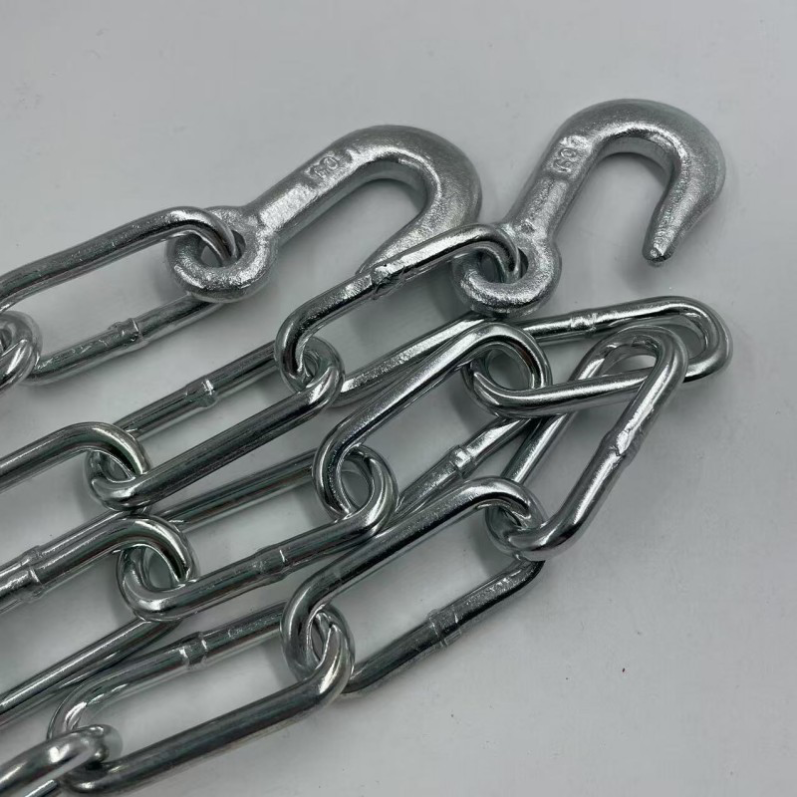

DIN763 chain with agriculture hooks
DIN763 chain with agriculture hooks, carbon steel, zinc plated, for farm and general purpose use.
Specifications
- Material
- Carbon steel
- Standard
- DIN 763
- Type
- Long link chain with agriculture hooks on both ends
- Surface treatment
- Zinc plated; electro galvanized and hot dip galvanized available
- Size range
- 3.2 mm to 25.4 mm diameter (see catalogue table)
- Applications
- Agricultural equipment, general purpose, barriers
DIN 763 long link chain fitted with agriculture-style hooks at both ends. It is used on farm equipment and for general purpose work where a hook connection is more convenient than threading the chain.
Where DIN 763 Chain with Hooks Is Used
Used on agricultural machinery and trailers, for animal tethers and stall fittings, and for general purpose securing where a hook-on connection is needed. Supplied hook-to-hook, hook-to-chain-end, or cut to length.
Material and Surface Finish
Carbon steel with a zinc plated finish. Electro galvanized and hot dip galvanized versions are available for more demanding outdoor and damp environments. Hooks are welded to the chain during production.
Sizes and Ordering
Standard sizes run from 3.2 mm up to 25.4 mm diameter in both metric and inch sizes. Unit weight ranges from roughly 10.8 kg per 200 ft at the smallest size to about 770 kg per 200 ft at the largest. Finishes include zinc plated, electro galvanized and hot dip galvanized; the full size table is available on request. DIN 763 is a general purpose chain and is not a grade-marked lifting chain.
