Germany standard link chain

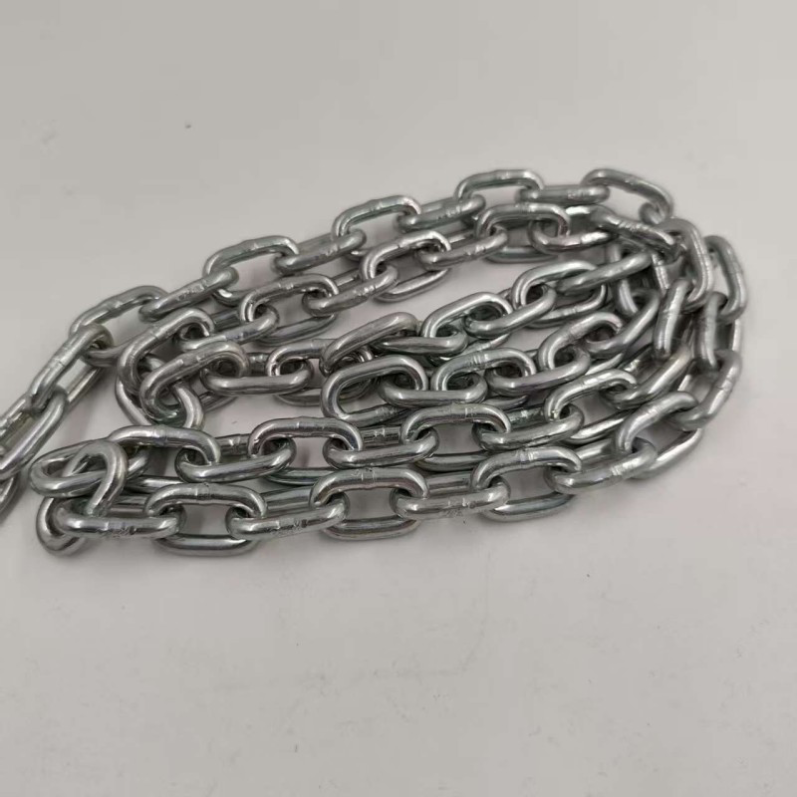

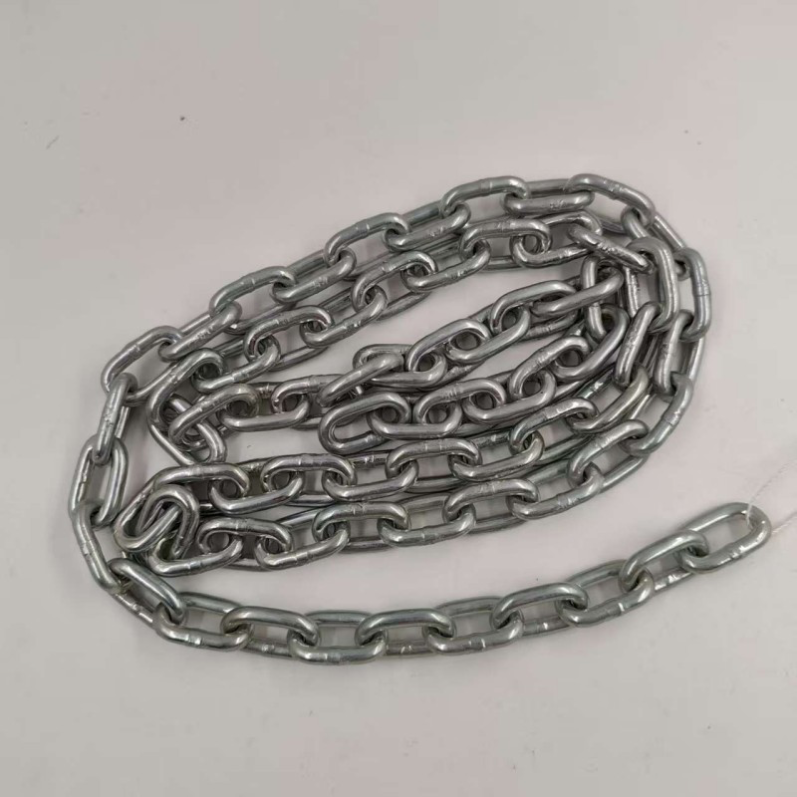

Zinc plated DIN766 standard link chain
Zinc plated DIN766 standard link chain, carbon or alloy steel, calibrated short link for marine and general purpose use.
Specifications
- Material
- Carbon steel or alloy steel
- Standard
- DIN 766
- Type
- Short link calibrated chain
- Surface treatment
- Zinc plated, galvanized or plastic powder coating
- Diameter range
- 2 mm to 32 mm
- Inside width (b1)
- 3.5 mm to 43 mm
- Unit weight
- 0.07 kg/m to 23.0 kg/m
- Applications
- Marine, mooring, general purpose
DIN 766 is the German standard for calibrated short link steel chain for general purpose use. The links are short and evenly sized so the chain runs smoothly over sheaves and sits squarely in hooks and shackles.
Typical Applications
Typical uses include general purpose and marine work such as mooring and anchoring lines, and barrier or decorative chain. DIN 766 is not a grade-marked lifting chain, so it should not be used for overhead lifting where a certified lifting chain is required.
Material and Surface Finish
Carbon steel or alloy steel with a zinc plated, galvanized or plastic powder coated finish. Electro galvanized and hot dip galvanized versions are available.
Sizes and Ordering
Production covers diameters from 2 mm up to 32 mm, inside width from about 3.5 mm to 43 mm and unit weight from roughly 0.07 kg per metre to about 23 kg per metre. The key figures are listed in the specifications section on this page; the full size table is available on request.
About Boyuan Metal
Nantong Boyuan Metal Technology Co., Ltd. manufactures and exports chain, wire rope and rigging hardware. Our range covers commercial, stainless steel, security and high tensile chains, including German standard and American standard chains. Custom sizes and non-standard chains can be produced to your drawing or sample.
Frequently Asked Questions
What is DIN 766 chain used for?
DIN 766 is the German standard for calibrated short link chain for general purpose use - typically general purpose rigging and marine work such as mooring and anchoring lines. It is not a grade-marked lifting chain and should not be used for overhead lifting where a certified lifting chain is required.
What sizes do you supply?
From 2 mm up to 32 mm diameter, in a range of about 0.07 to 23 kg per metre. Smaller sizes suit light general purpose work; heavier sizes are chosen for mooring and anchoring. Tell us the duty and we will suggest a diameter.
What is the difference between DIN 766 and grade 80 chain?
DIN 766 is a general purpose calibrated chain specified by link dimensions. Grade 80 is a heat-treated lifting chain specified by working load. If you need to lift overhead, choose the grade 80 or grade 100 chain rather than DIN 766.
What finishes are available?
The standard finish is zinc plated. For wetter or more exposed sites a heavier galvanized finish is worth considering, and plastic powder coating is used where a colour is wanted. Tell us where the chain will be used and we will recommend the finish.
Can I order cut lengths?
Yes. Tell us the diameter, finish and total length, and we will confirm the size, the packing and the price.
Full Size Table (DIN 766)
Diameter d (mm) | Inside width b1 (mm) | Weight (kg/m) |
|---|---|---|
2 | 3.5 | 0.07 |
3 | 4.2 | 0.16 |
4 | 5 | 0.32 |
5 | 6 | 0.5 |
6 | 7.2 | 0.8 |
7 | 8.4 | 1.1 |
8 | 9.6 | 1.4 |
9 | 10.8 | 1.8 |
10 | 12 | 2.2 |
11 | 13.2 | 2.7 |
12 | 14.4 | 3.10 |
13 | 15.6 | 3.8 |
14 | 16.8 | 4.4 |
16 | 19.2 | 5.7 |
18 | 21.6 | 7.3 |
19 | 22.8 | 7.97 |
20 | 24.0 | 9.0 |
22 | 26.4 | 11.0 |
23 | 27.6 | 12 |
26 | 31.2 | 15 |
28 | 33.8 | 18 |
30 | 41.0 | 19.5 |
32 | 43.0 | 23.0 |
Figures from our catalogue. Outside width, link length and per-length weights are also available on request. Tell us the diameter and length you need and we will confirm the supply.
