Weldless Chain: The Complete Guide to Non-Welded Chain Types and Applications
This guide covers the common types, materials, finishes, and typical uses of weldless chain.
Weldless chain is a category of chain manufactured without any welding process. Instead of welding each link closed, the chain is formed by bending or twisting wire, or by mechanically interlocking components. This makes weldless chain lighter, more economical, and ideal for a wide range of low-load, decorative, and utility applications — but it is never intended for lifting or heavy load-bearing.
What Is Weldless Chain?
Weldless chain, also called non-welded chain or open-link chain, is produced without any fusion welding. The links are shaped from wire or metal strip, then interlocked by mechanical means. This reduces production cost and allows for very small or highly decorative chains that would be difficult to weld.
Because no weld means no heat-affected zone, weldless chain is usually not rated for strength. It is intended for hanging, securing, pulling light loads, or decoration — not for lifting or heavy securing.

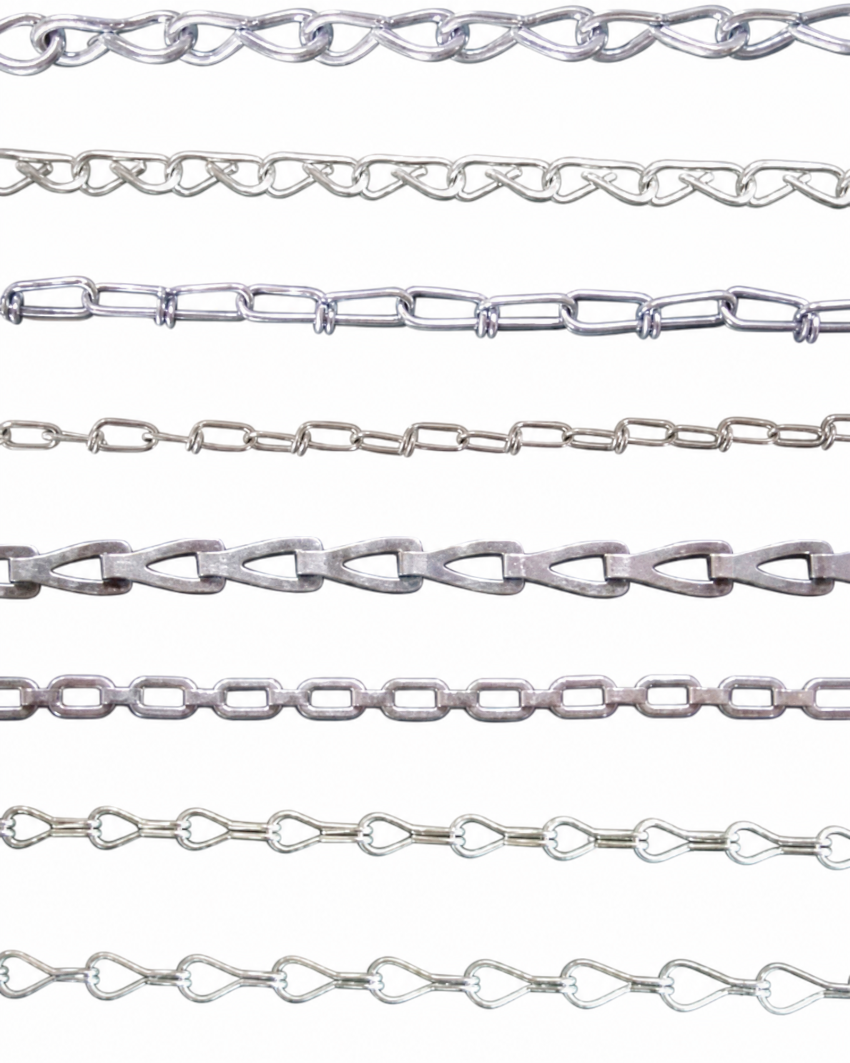

Common Types of Weldless Chain
Type | Description | Typical Use |
|---|---|---|
Single Loop Chain | Each link is a single open loop twisted into the next link. Oval or pear-shaped. | Hanging signs, light fixtures, display chains |
Double Loop Chain (Knotted Chain) | Each link is formed into a double loop or knot, with no open ends. Also referred to as DIN 5686 chain without quality requirements. | Key chains, decorative chains, light duty utility |
Sash Chain | Very fine, flat or round wire chain, extremely lightweight. | Window sash cords, lamp pull chains, small utility |
Jack Chain | Made from stamped metal or bent wire, flat profile links. | Light duty hanging, pet tags, electrical fixture support |
Bead Chain | Small metal beads connected by short wire links. | Pull chains for switches, ID tags, keychains |
Ornamental / Decorative Chain | Various shapes and finishes, including twisted, figure-eight, or diamond patterns. | Home décor, costume jewelry, retail display |
Materials and Surface Finishes
Weldless chain can be produced from a range of materials, depending on the required appearance and environment:
Material | Characteristics |
|---|---|
Low-carbon steel | Most common, cost-effective, available in various finishes |
Stainless steel (304/316) | Corrosion-resistant, suitable for outdoor, marine, or food environments |
Brass / Copper | Decorative appearance, often used for lighting and furniture |
Aluminium | Lightweight, corrosion-resistant, lower strength |
Common surface finishes include:
- Electro-galvanized — bright silver, light corrosion protection
- Hot-dip galvanized — thicker, matte grey, better outdoor durability
- Brass-plated — decorative golden appearance
- Black oxide — dark, minimal reflection
- Colour-coated / PVC-coated — coloured finishes for visibility or aesthetics
Typical Applications
Weldless chain is used across many everyday and industrial niches:
Application | Preferred Chain Type |
|---|---|
Lighting and ceiling fans | Single loop, sash chain |
Sign and display hanging | Single loop, jack chain |
Key chains and pet tags | Double loop, bead chain |
Pet leashes and tie-outs | Double loop or single loop (light duty only) |
Window blinds and shades | Bead chain, sash chain |
Curtain and drapery weights | Sash chain, jack chain |
Decorative furniture and home décor | Ornamental chain |
Garden and landscaping | Single loop, plastic-coated chain |
Weldless Chain vs. Welded Chain
Feature | Weldless Chain | Welded Chain |
|---|---|---|
Production method | Bending, twisting, or mechanical interlocking | Electric resistance or flash-butt welding |
Strength | Low, not load-rated | Moderate to very high, load-rated |
Heat treatment | Not applicable | Common for high grades |
Intended use | Hanging, decoration, light utility | Securing, towing, lifting, industrial |
Cost | Low | Higher, depending on grade |
Safety | Not for lifting or heavy loads | Grade-specific for lifting or tie-down |
How to Choose the Right Weldless Chain
- Confirm the load — weldless chain is for light loads only. If in doubt, use a welded chain.
- Consider the environment — indoor decorative use allows brass or electro-galvanized steel. Outdoor or wet areas require stainless steel or hot-dip galvanized.
- Determine the required appearance — choose from bright, matte, coloured, or coated finishes.
- Select the link style — single loop for hanging, double loop for key chains, bead chain for pull switches.
- Specify length and packaging — common retail packages include reels, poly bags, hanging cards, or bulk spools.
Boyuan Metal Supply Capability
Boyuan Metal supplies weldless chain in various types, materials, and finishes, including:
- Single loop, double loop, sash, and jack chain
- Electro-galvanized, hot-dip galvanized, brass-plated, and PVC-coated finishes
- Steel, stainless steel, and brass materials
- Custom lengths, diameters, and retail packaging
- OEM/ODM branding and private label options
Whether you need decorative chain for retail or light utility chain for hardware distribution, we can provide consistent quality at competitive prices. Contact us to discuss your weldless chain requirements or request a sample.
